Check Cooling System for Leaks

PY16247-UN-20AUG13

PY16248-UN-20AUG13

PY16249-UN-18JUL12

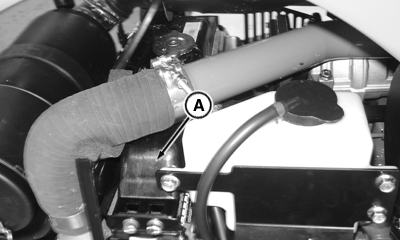

A - Radiator

B - Coolant Reservoir

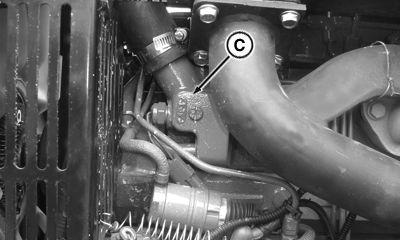

C - Thermostat Housing

Service Interval—600 Hours

1. Check around base of radiator (A) for pinholes, cracks or any sign of coolant leakage.

2. Inspect coolant reservoir (B) for holes, cracks or any sign of coolant leakage.

3. Inspect area around thermostat housing (C) for cracks, or any sign of coolant leakage.
