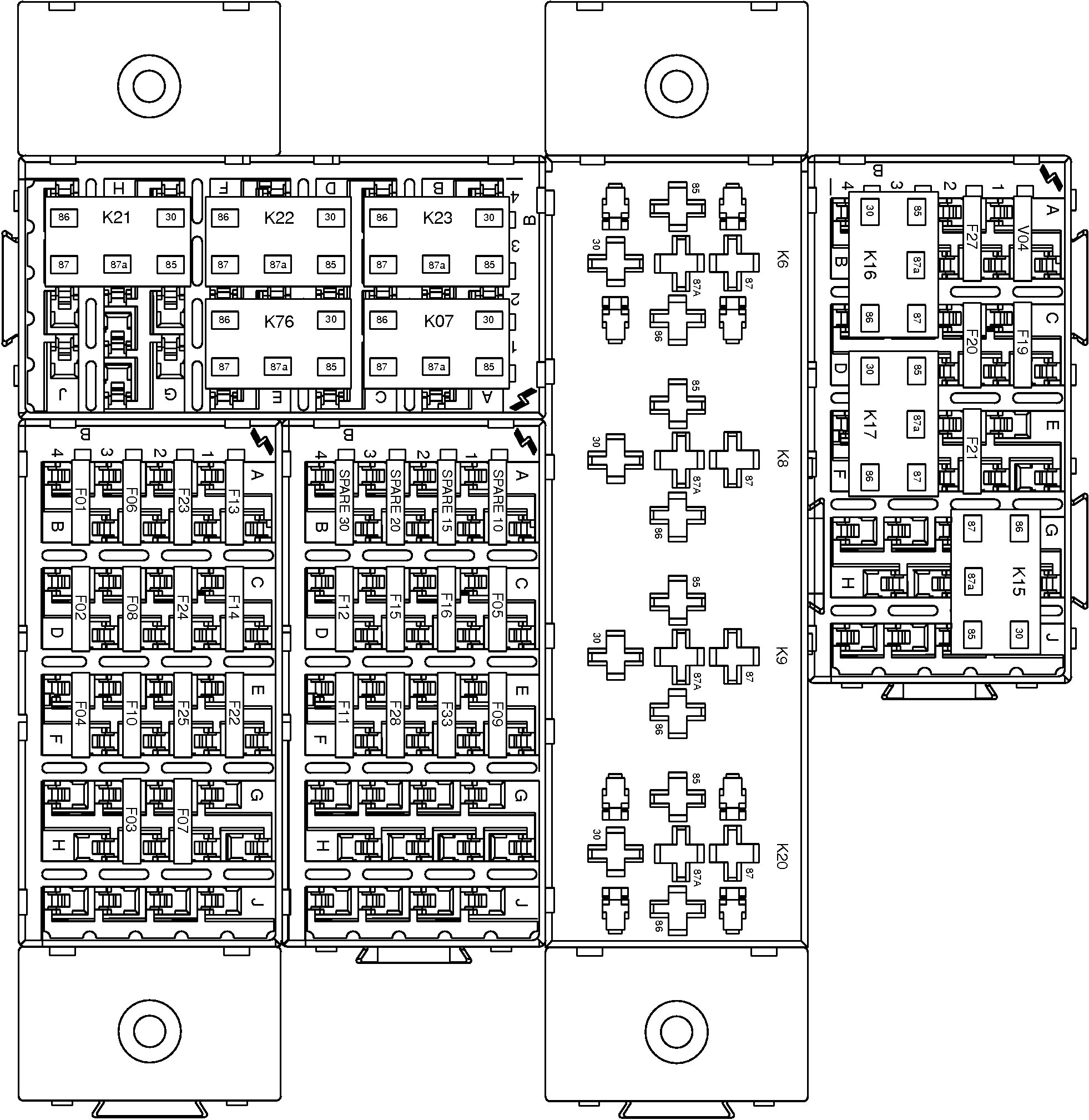

Load Center Fuses and Relays—Cab (PowrReverser™ Transmission)

PY16385-UN-27SEP12

F01 - Key Switch Fuse, 20 Amp

F02 - Warning Lights and Turn Lights Fuse, 30 Amp

F03 - Dome Light and Radio Fuse, 10 Amp

F04 - Light Switch Fuse, 20 Amp

F05 - Low Beam Headlights Fuse, 10 Amp

F06 - Junction Block Fuse, 30 Amp

F07 - Turn Signal Light Switch Fuse, 10 Amp

F08 - Instrument Cluster Fuse, 10 Amp

F09 - Brake Pedal Switch Fuse, 15 Amp

F10 - Trailer Auxiliary Power Fuse, 30 Amp

F11 - Junction Block Fuse, 30 Amp

F12 - Radio Fuse, 10 Amp

F13 - Rear Work Lights Fuse, 30 Amp

F14 - Front Work Lights Fuse , 30 Amp

F15 - Tail Lights Fuse, 10 Amp

F16 - High Beam Headlights Fuse, 10 Amp

F19 - Electro-Hydraulic Control Unit and Service ADVISOR Fuse, 10 Amp

F20 - Electrohydraulic System Power Fuse, 10 Amp

F21 - Electrohydraulic Control Unit Fuse, 10 Amp

F22 - Seat Switch Fuse, 10 Amp

F23 - HVAC and Right Blower Fuse, 30 Amp

F24 - Front Wiper Fuse, 20 Amp

F25 - Left Blower, 20 Amp

F27 - PowrReverser™ Backup Alarm Fuse, 5Amp

F28 - Tail Lights Fuse, 10 Amp

F33 - Work Lights Fuse, 10 Amp

SPARE 10 - Spare Fuse, 10 Amp

SPARE 15 - Spare Fuse, 15 Amp

SPARE 20 - Spare Fuse, 20 Amp

SPARE 30 - Spare Fuse, 30 Amp

K06 - Trailer Power Relay

K07 - Accessory Relay

K08 - Rear Work Light Relay

K09 - Front Work Lights Relay

K15 - Electrohydraulic System Relay

K16 - Not Neutral Relay

K17 - Transmission Enable Relay

K20 - HVAC Relay

K21 - Wiper System Relay

K22 - Left Blower Relay

K23 - Right Blower Relay

K76 - Fuel Transfer Pump Relay

V04 - Diode
