Select Front Tire Rolling Direction

1.
   RW510-UN-06APR89

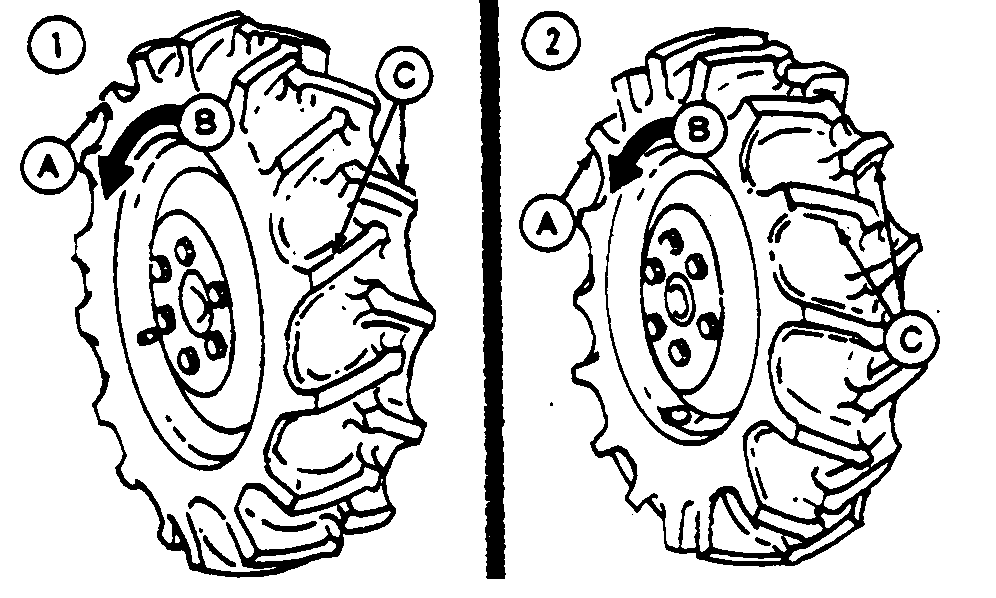

   Left Tire (Viewed From Rear)

   A - Front Tire (Viewed from Rear)

   B - Rolling Direction of Tire

   C - Tire Lugs

   Under most conditions, front tires (A) is mounted with the direction of tire lugs (C) the same as the rolling direction of tire (B).

---




2. If the tractor is used for loader operations, lug direction can be reversed on the MFWD axle to reduce tire wear.
