Tighten Wheel Bolts—MFWD Axle

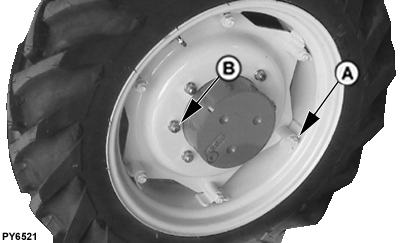

PY6521-UN-06NOV06

A - MFWD Wheel Rim-to-Disk Bolts

B - MFWD Wheel Disk-to-Hub Nuts

Tighten hardware (A and B) to specifications.

Item	Measurement	Specification
MFWD Wheel Rim-to-Disk Bolts (A)	Torque	245 N•m (180 lb-ft)
MFWD Wheel Disk-to-Hub Nuts (B)	Torque	310 N•m (228 lb-ft)
