Tighten Wheel Bolts—Rear Axle

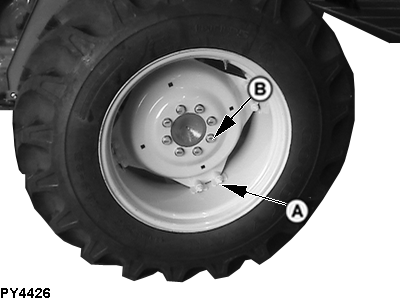

PY4426-UN-15JUN06

A - Rear Wheel Rim-to-Disk Bolts

B - Rear Wheel Disk-to-Hub Bolts

Tighten bolts (A and B) to specifications.

Item	Measurement	Specification
Rear Wheel Rim-to-Disk Bolts (A)	Torque	245 Nm (180 lb-ft)
Rear Steel Wheel Disk-to-Hub Bolts (B)	Torque	550 Nm (406 lb-ft)
