Adjust Headlights

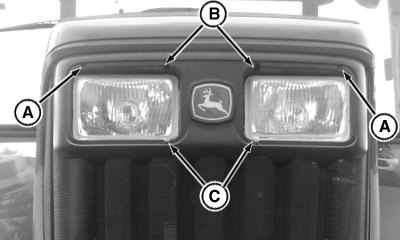

PY16265-UN-19JUL12

A - Headlight Mounting Screw

B - Headlight Mounting Screw

C - Headlight Mounting Screw

IMPORTANT: Apply penetrating spray lubricant to the threads of top and bottom adjusting screws before starting procedure. If this is not done, it will be quite hard to turn adjusting screws in either direction.

1. Turn screws (A and B) counterclockwise to lower beam or clockwise to raise beam.

2. Turn screws (A) counterclockwise and screws (B and C) clockwise an equal number of turns on each screw.

3. Turn screws (B and C) counterclockwise and screws (A) clockwise an equal number of turns on each screw.

Adjust Headlight

1.

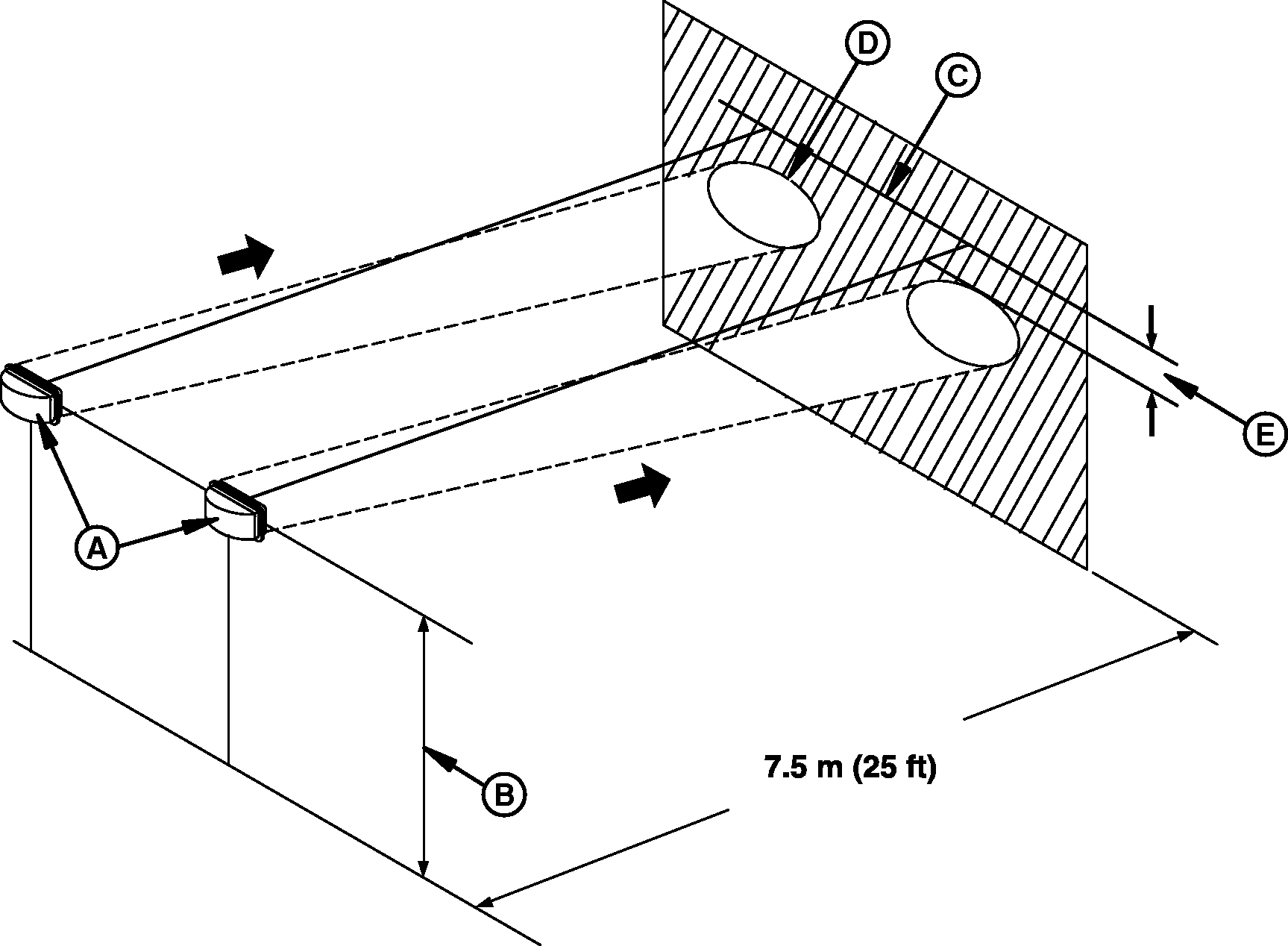

   PULV000659-UN-05MAY08

   Headlight Aiming Diagram

   A - Headlights

   B - Distance from Center of Headlight to Ground

   C - Horizontal Line on Wall

   D - Border of Bright Area

   E - 10% of Distance (B)

   Park the tractor on a level surface with headlights (A) 7.5 m (25 ft) from a vertical wall.

---




2. Measure the distance (B) from the center of a headlight to the ground.

3. Mark a horizontal line (C) on the wall, the same distance from the ground as (B).

4. Set headlights on low beam and observe bright areas on the wall.

5. Use screws at the back of lights for adjustment.
