Before Starting the Engine –– Cab (SyncShuttle)

TS220
TS220-UN-15APR13

PY16164
PY16164-UN-11SEP12

PY16165
PY16165-UN-04SEP12

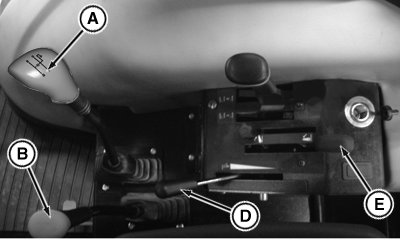

A - Gear Shift Lever

B - Range Shift Lever

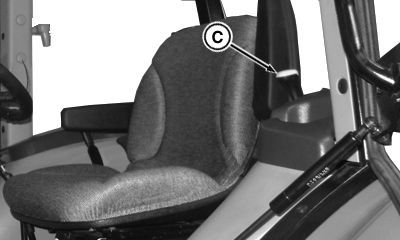

C - PTO Lever

D - Draft Control Lever

E - Position Control Lever

CAUTION: Prevent asphyxiation. Engine exhaust fumes can cause sickness or death to operator or someone else.

Always operate the engine in an area with proper ventilation.

Either use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to bring enough outside air into the area.

  1. Check fuel gauge to be sure that tractor has enough fuel.

  2. Place gearshift lever (A) in PARK position, range shift lever (B) in NEUTRAL and PTO lever (C) in OFF position.

  3. Place draft control lever (D) and position control lever (E) in lowered position.

  4. Check indicator lights. Indicators illuminate when the key switch is turned to the ON position.

    If any indicator does not function properly, see nearest John Deere dealer.

SD74272,00006B4-19-20200318
