Tractor Controls — Right-Hand Controls OOS (9x3 TSS Transmission)

APY21567-UN-06JUN20

PY11355-UN-07JAN11

PY11356-UN-07JAN11

APY21568-UN-08JUN20

APY35278-UN-23SEP20

Rear Hitch Height Control Switch (If Equipped)

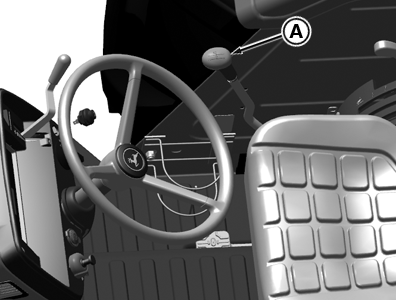

A - Gearshift Lever

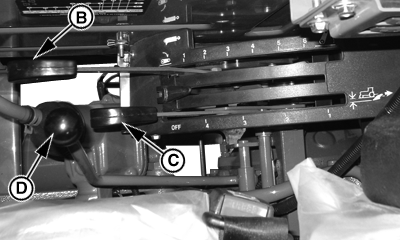

B - Rockshaft position Control Lever

C - Rockshaft Draft control Lever

D - SCV Lever—If Equipped

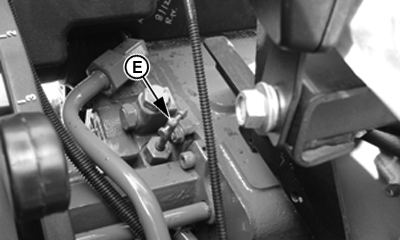

E - Rockshaft Rate of Drop Knob

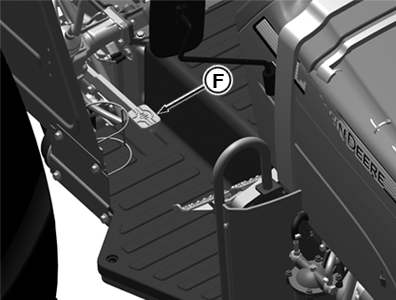

F - Differential Lock Pedal

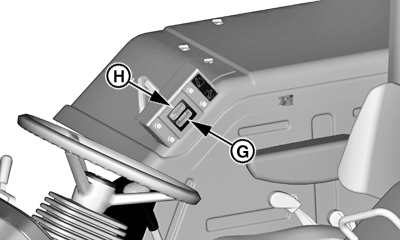

G - Quick Lower Switch (If Equipped)

H - Quick Raise Switch (If Equipped)

NOTE: Floor mat is applicable for 5310,5210,5405 domestic models with TSS transmission.
