Tractor Controls — Left-Hand Controls OOS (9x3 TSS Transmission)

PY27507-UN-05JAN16

PY11263-UN-24JAN11

APY35272-UN-23SEP20

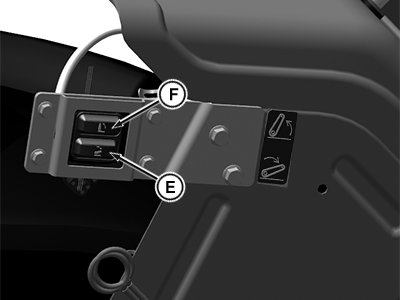

Rear Hitch Height Control Switch (If Equipped)

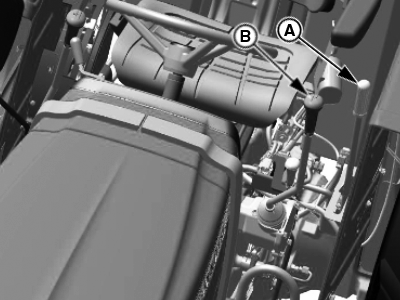

A - PTO Lever

B - Range Shift Lever

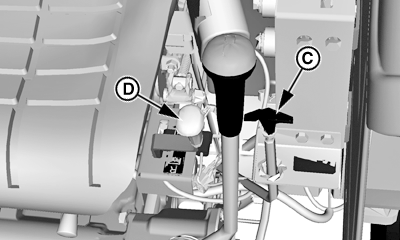

C - MFWD Lever-If Equipped

D - Reverse PTO or Dual PTO Lever (If Equipped)

E - Rear Hitch Lower Switch (If Equipped)

F - Rear Hitch Raise Switch (If Equipped)

NOTE: Either Dual PTO or Reverse PTO will be provided. Both features are not available on a single tractor.
