Use Tail Lights

APY40189
APY40189-UN-06NOV20

APY47291
APY47291-UN-11JUN21

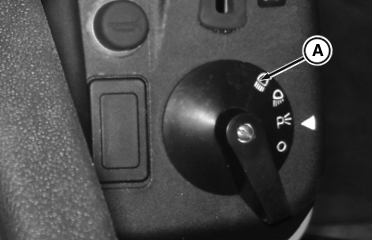

A - High Beam Headlight Position

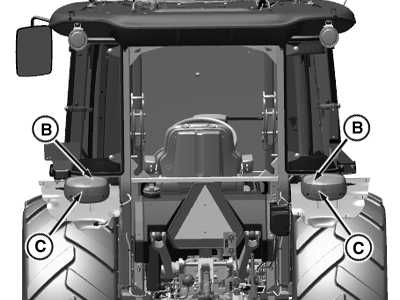

B - Turn Signal Lights

C - Tail Lights

Red tail lights (C) are switched on when light switch is on either high beam headlight position (A), or park position.

Be sure that tail light lenses are clean before driving on a road, so other drivers can see them easily.

CAUTION: Prevent collisions between other road users, slow moving tractors with attachments or towed equipment, and self-propelled machines on public roads. Frequently check for traffic from the rear, especially in turns, and use hand signals or turn signal lights.

Use headlights, flashing warning lights, and turn signals day and night. Follow local regulations for equipment lighting and marking. Keep lighting and marking visible and in good working order. Replace or repair lighting and marking that has been damaged or lost. An implement safety lighting kit is available from your John Deere dealer.

SG77823,000066F-19-20210618
