Use Turn Signals (Domestic Tractor)

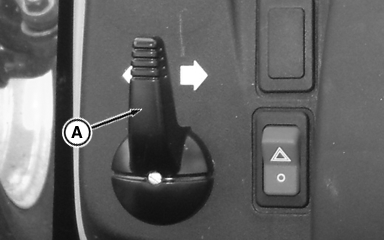

PY15572-UN-03AUG12

Turn Signal Switch

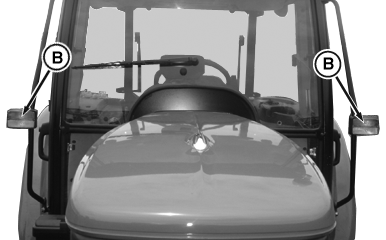

PY15575-UN-06AUG12

Front Turn Signal Lights

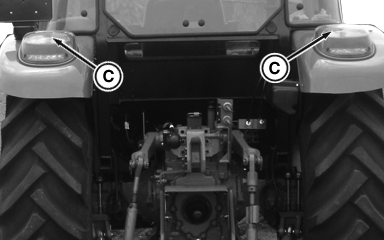

PY15573-UN-29AUG12

Back Turn Signal Lights

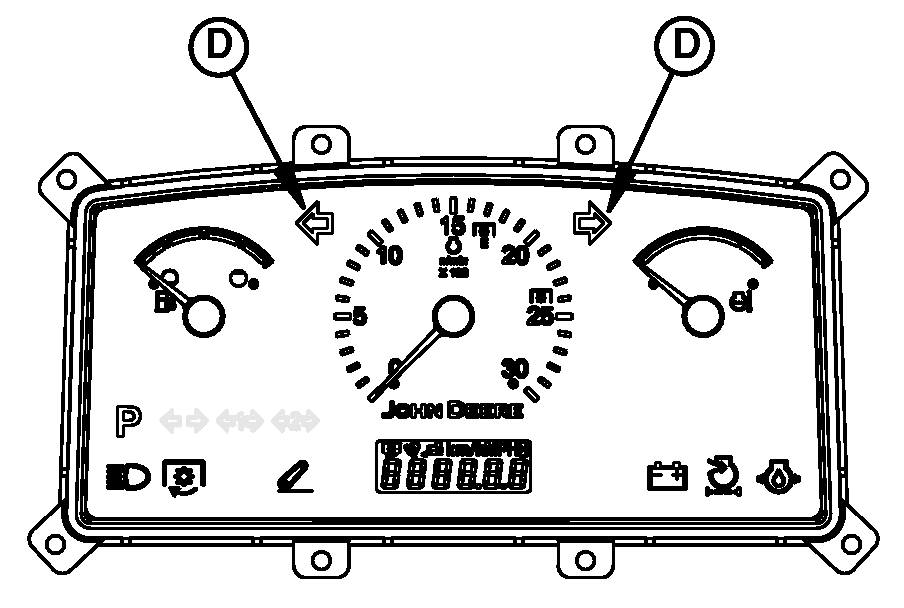

APY40117-UN-06NOV20

SyncShuttle

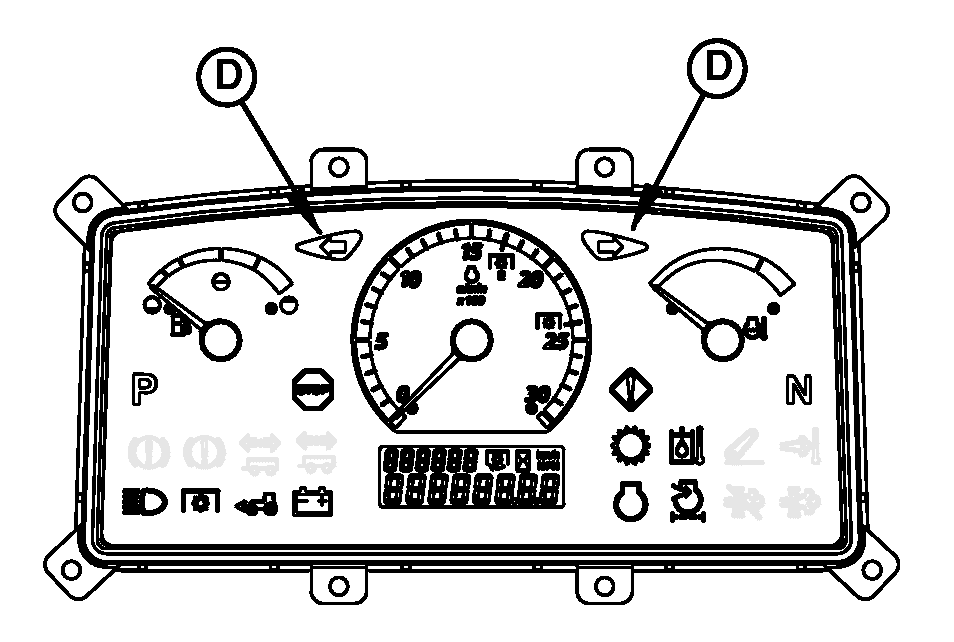

APY40118-UN-07DEC20

PowrReverser

A - Turn Signal Switch

B - Front Turn Signal Light

C - Rear Turn Signal Lights

D - Turn Signal Indicator

Move turn signal switch (A) left to indicate a left-hand turn or right for a right-hand turn. Turn the signal indicator (D) flashes to the signal turn direction.

When the switch is in right side position, front and rear turn lights on the right-hand side flashes. When the switch is in left side position, front and rear turn lights on the left-hand side flashes.

NOTE: Be sure to manually return switch to the center position after turning.
