Clean Grille, Radiator, Charge Air Cooler (CAC), and Fuel Cooler (SyncShuttle)

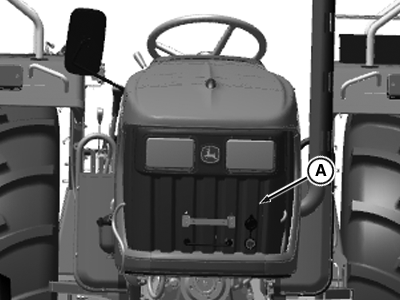

1. Whenever dirt builds up on the front grille (A), stop the engine and brush clean.


   TS266-UN-23AUG88


   APY47288-UN-11JUN21

   A - Grille

   CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

   IMPORTANT: Once finished the cleaning makes sure that hood is locked properly and keeps the hood lock key with operator only.

---




2.
   PY18783-UN-17SEP13


   PY18784-UN-17SEP13

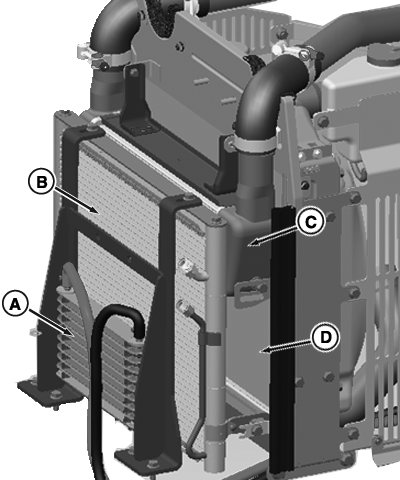

   A - Fuel Cooler (only for 5075E)

   B - Condenser

   C - Charge Air Cooler

   D - Radiator

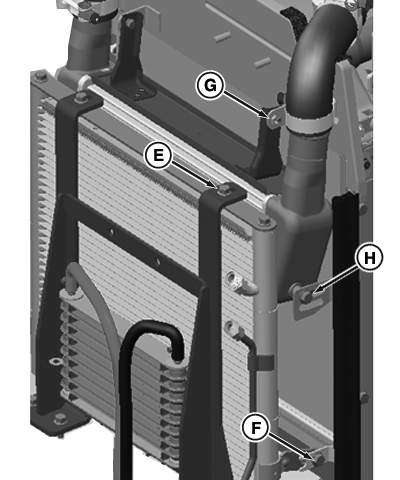

   E - Screws (2 used)

   F - Screws (2 used)

   G - Screws (2 used)

   H - Screws (2 used)

   Clean fuel cooler (A) and front of the condenser (B) at the installed condition.

---




3. Loosen the screws (E) and (F). Slide the condenser (B) along the slot at screw (F).

4. Clean the front of the charge air cooler (C).

5. Loosen the screws (G) and (H). Tilt charge air cooler about a screw (G) until it is close to condenser (B).

6. Clean radiator (D) front surface.

7. If a more thorough cleaning is necessary, clean radiator from behind with the compressed air or water. Straighten any bent fins.
