Adjust Toe-In—MFWD Axle

1.

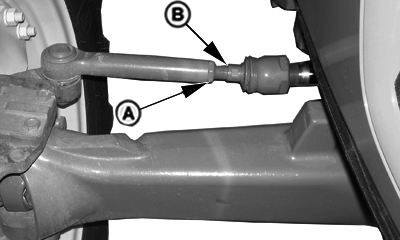

   PULV000539-UN-21MAR08

   A - Tie Rod Jam Nuts

   B - Inner Rod

   Loosen lock nuts (A) on both ends of tie rod.

---




2. To lengthen or shorten tie rod, adjust both sides equally by rotating the inner rod (B) as needed, to obtain toe-in or toe-out of less than 3 mm (1/8 in).

   Tie Rod Rotation	Approximate Change
   1/8 turn	4 mm (3/16 in)
   1/4 turn	8 mm (3/8 in)
   1/2 turn	16 mm (5/8 in)

3. Tighten lock nuts to specification.

   Item	Measurement	Specification
   Jam Nuts	Torque	220 – 240 N·m (162 – 177 lb·ft)
