Check Hoses and Hose Clamps for Tightness

PY17583-UN-06FEB13

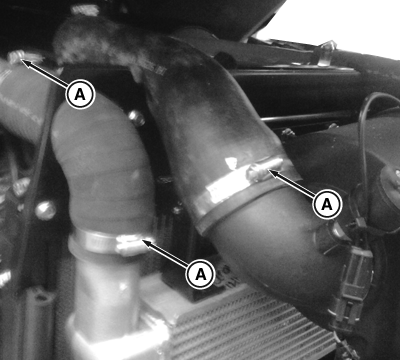

Air Filter-to-Turbocharger and Intercooler-to-Intake Manifold

PY17584-UN-06FEB13

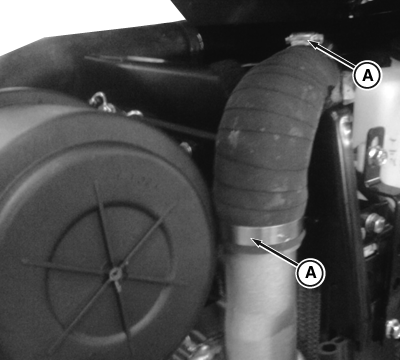

Intercooler-to-Turbocharger (If Equipped)

PY8822-UN-21APR09

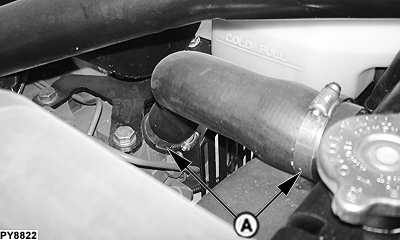

Radiator-to-Thermostat Cover

PY8823-UN-21APR09

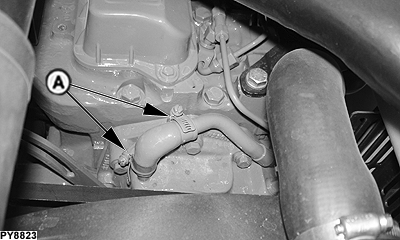

Water Pump

PY8877-UN-21JUN09

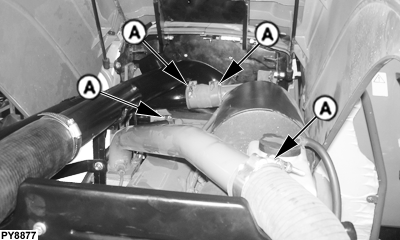

Engine Crankcase Vent Tube and Other Hoses Going to Turbocharger

PY8825-UN-21APR09

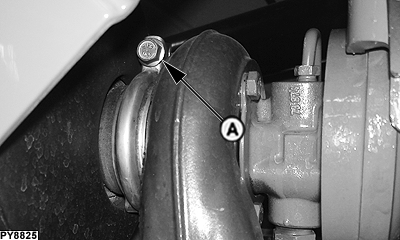

Turbocharger-to-Muffler

A - Hose Clamps

• Air cleaner to engine intake or turbocharger
• Engine cooling
• Hydraulics
• Fuel

Check all hoses for cracks which could cause leaks or possible failure. Replace as necessary.
