Seven-Terminal Outlet
PY15580-UN-07AUG12

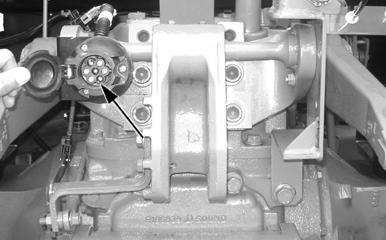

Rear Side of Tractor
PY5606-UN-06MAR07

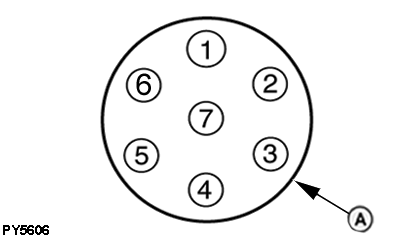

Seven-Terminal Outlet
A - Seven-Terminal Outlet
Outlet (A) is used to connect lights, turn signals, and remote electrical equipment on trailers or implements. Always use auxiliary light on towed implement when tractor rear signals and other lights are obscured.NOTE: Matching plug is available through your John Deere dealer.
|
Terminal |
Function |
Wire Color |
|---|---|---|
|
1 |
Left Turn Light |
Green |
|
2 |
Accessory |
Red |
|
3 |
Ground |
Black |
|
4 |
Right Turn Light |
Green |
|
5 |
Tail Light |
Gray |
|
6 |
Brake Light |
Blue |
|
7 |
Tail Light |
Gray |
|
SV86979,0000062-19-20121220 |
