Opening Windows

PY16142-UN-23JUN12

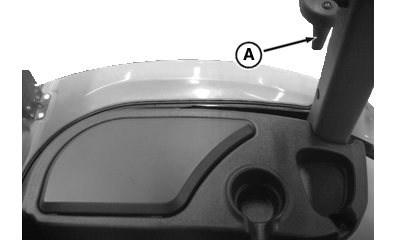

Left-Side Window

PY16143-UN-23JUN12

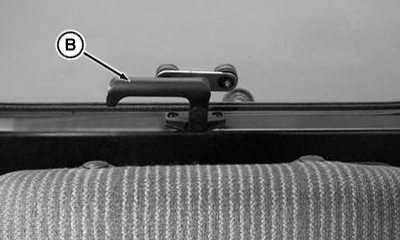

Rear Window

PY18790-UN-01OCT13

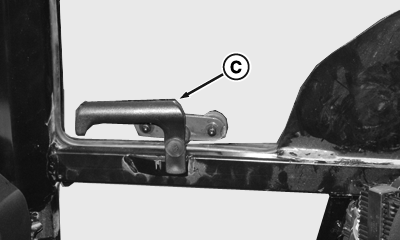

Front Window (Heater Only)

A - Side Window Handle

B - Rear Window Handle

C - Front Window Handle (Heater Only)

Front, Side and rear windows can be opened for better ventilation.

NOTE: Front window opening option is available for heater only cab.

Side: Pull handle (A) toward rear and push to lock open.

Rear: Rotate handle (B) clockwise and push out.

Front: Rotate handle (C) clockwise and push out.

NOTE: Rear window opening provides a large exit path if cab doors are blocked in case of an emergency.
