Deicing, Demisting, or Defrosting Windshield (HVAC Only)

1.
   LV8596-UN-14AUG03


   LV10324-UN-21SEP04

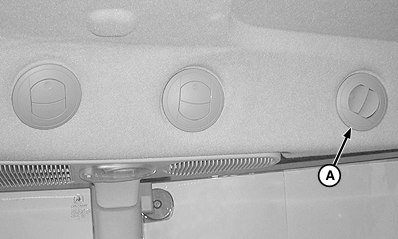

   A - Front Vent

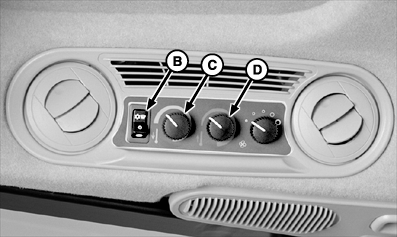

   B - Deicing Switch

   C - A/C Temperature Control Knob

   D - Heater Temperature Control Knob

   Aim two front vents (A) toward windshield.

---




2. NOTE: Closing middle and rear vents will help clear windshield faster.

   Press top half of deicing switch (B) and turn A/C temperature control knob (C) to full counterclockwise position.

3. Turn heater temperature control knob (D) clockwise to obtain desired temperature.
