Stopping the Engine—(SyncShuttle)

1.
   PY28110-UN-21JUN16


   PY15588-UN-10AUG12


   PY28112-UN-21JUN16

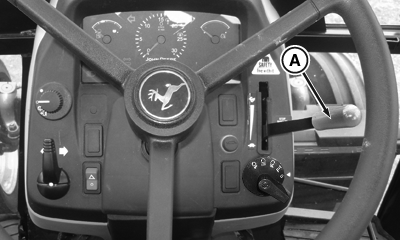

   A - Hand Throttle

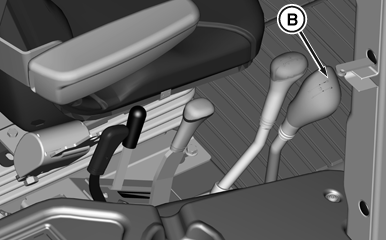

   B - Gear Shift Lever

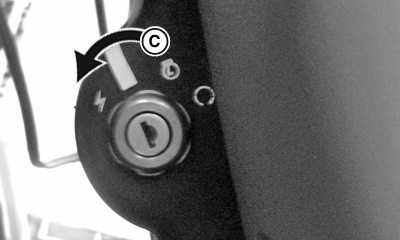

   C - Key Switch Off Position

   Pull hand throttle (A) back to low idle position. Allow engine to idle for one—two minutes.

---




2. Push gearshift lever (B) to Neutral position.

3. IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

   Turn key switch to the ”OFF” position (C).

   CAUTION: Remove key from key switch to prevent operation by untrained personnel.
