Load Center Fuses and Relays—Cab (sync shuttle Transmission)

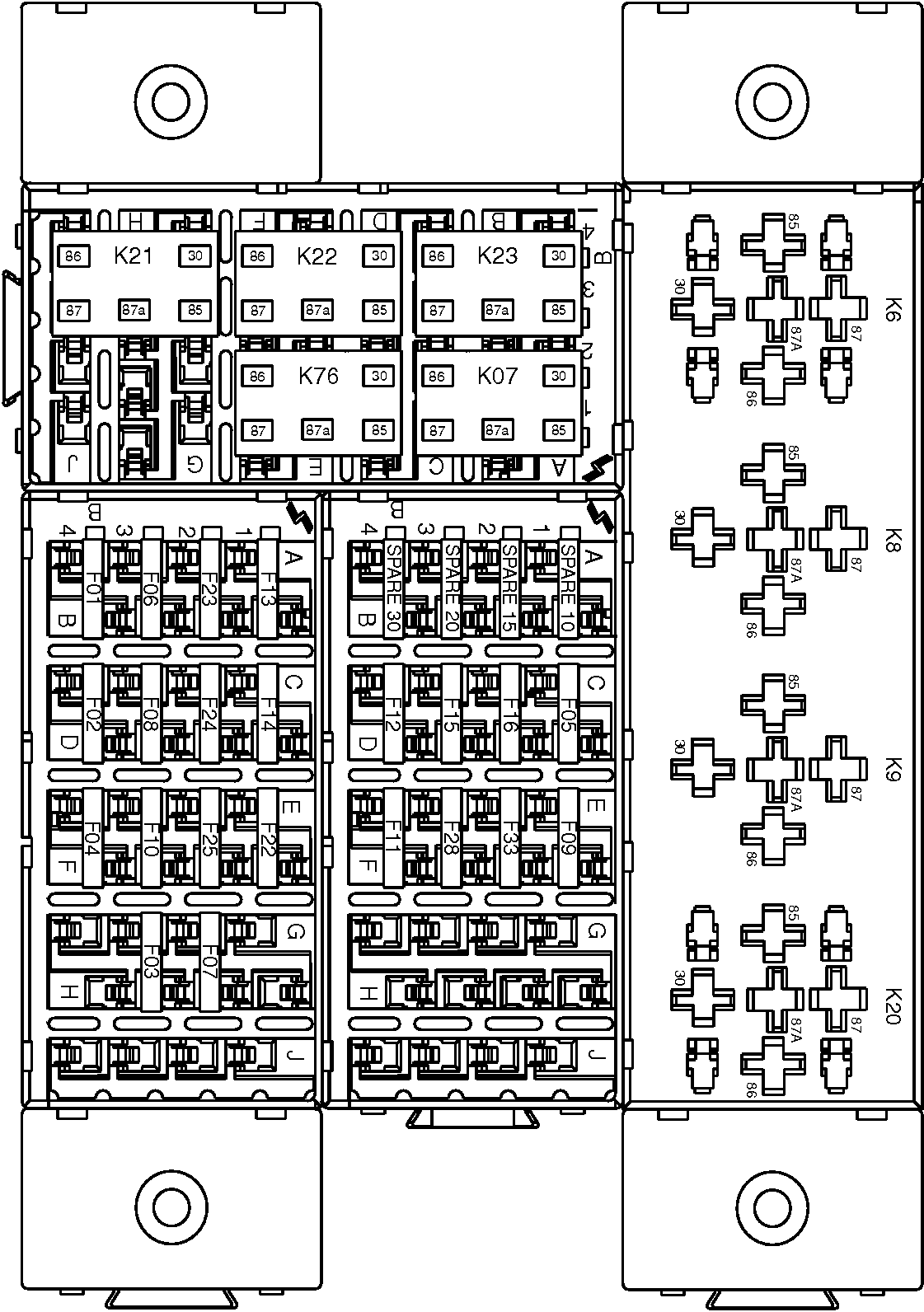

PY15627-UN-05FEB13

K06 - Trailer Power Relay

K07 - Accessory Relay

K08 - Rear Work Relay

K09 - Front Work Relay

K20 - HVAC Relay

K21 - Wiper Relay

K22 - Left Blower Relay

K23 - Right Blower Relay

K76 - Fuel Transfer Pump Relay

SPARE 10 - Spare Fuse, 10 Amp

SPARE 15 - Spare Fuse, 15 Amp

SPARE 20 - Spare Fuse, 20 Amp

SPARE 30 - Spare Fuse, 30 Amp

F01 - key Switch , 30 Amp

F02 - Hazard Switch, 30 Amp

F03 - Dome Lamp Switch, 10 Amp

F04 - Light Switch, 20 Amp

F05 - Loader Lights, 10 Amp

F06 - Junction Block , 30 Amp

F07 - Turn Signal Switch , 10 Amp

F08 - Instrument Cluster , 10 Amp

F09 - Brake Pedal Switch, 15 Amp

F10 - Trailer , 30 Amp

F11 - Junction Block, 30 Amp

F12 - Radio , 10 Amp

F13 - Rear Work , 30 Amp

F14 - Front Work , 30 Amp

F15 - Clearance Lamp, 10 Amp

F16 - Loader Lights, 10 Amp

F22 - Seat Switch , 10 Amp

F23 - HVAC , 30 Amp

F24 - Wiper , 20 Amp

F25 - Left Blower , 20 Amp

F28 - Clearance Lamp, 10 Amp

F33 - Flood Light , 10 Amp
