Replace Floodlight Element—Cab

1.
   LV5569-UN-07DEC00


   LV5570-UN-07DEC00

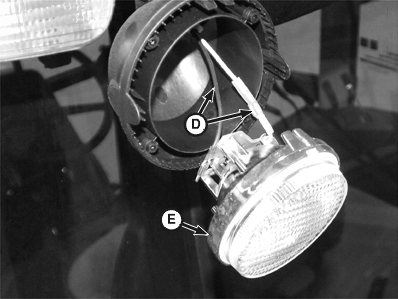

   LV5571-UN-07DEC00

   A - Cover

   B - Screw (4 used)

   C - Retaining Ring

   D - Wiring Connector

   E - Floodlight Bezel

   Pry off cover (A).

---




2. Remove screws (B), retaining ring (C) and floodlight bezel (E) from housing.

3. Disconnect connectors (D).

4. Release clip. Remove and discard old bulb.

5. Inspect rubber seal for cracks that may cause leaks. Replace if necessary.

6. Slide new bulb into floodlight bezel (E) and reapply clip.

7. Connect bezel to connector.

8. Reinstall bezel, screws, and cover.
