Clean Cab Air Filters

Recirculation Filters (Inside Cab)

CAUTION: The air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator manual and chemical manufacturer when using agricultural chemicals.

NOTE: There are filters on both sides of cab. Left-hand side is shown.

P14487-UN-30OCT07

P14488-UN-30OCT07

P14490-UN-30OCT07

A - Cover

B - Wing Screw

C - Filter Retainer

D - Filter

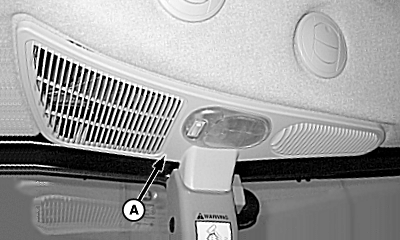

1. Pry off cover (A). (Pull down along window.)

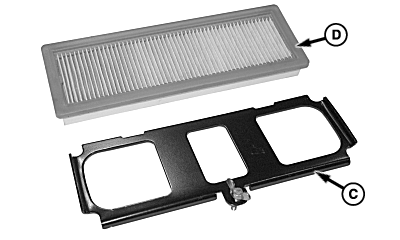

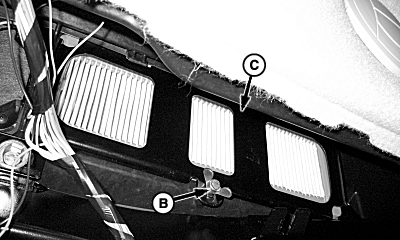

2. Remove wing screw (B), filter retainer (C), and filter (D).

3. Inspect filter for holes or damage. Inspect rubber seal for cracks or wear. Replace as necessary.

4. NOTE: Do NOT clean filter with water or compressed air. Cleaning the filter is not recommended and it must be replaced as needed.

   Replace filter when it becomes dirty. It can require replacing filter more often in dusty conditions.

5. Install filter with a rubber seal toward the filter retainer (C).

6. Install filter retainer (C) , wing screw (B), and cover (A).

7. Repeat procedure on the opposite side.

Fresh Air Filters (Outside Cab)

1.
   P14491-UN-30OCT07

   Under Roof, Above Cab Door


   P14489-UN-30OCT07


   P14492-UN-30OCT07

   A - Wing Screw

   B - Filter Cover

   C - Wing Screw

   D - Filter Retainer

   E - Filter

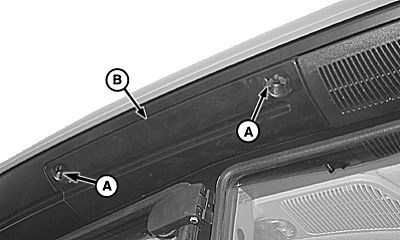

   Remove two wing screws (A) and cover (B).

---

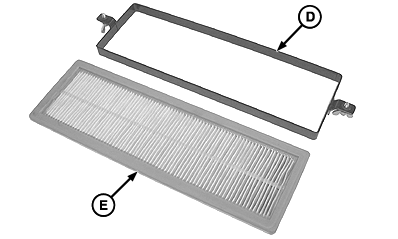

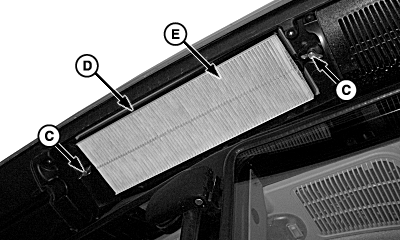

2. Remove wing screws (C), filter retainer (D), and filter (E).

3. Inspect filter (E) for holes or damage. Inspect rubber seal for cracks or wear. Replace as necessary.

4. NOTE: Do not clean filter with water or compressed air. Cleaning the filter is not recommended and it must be replaced as needed.

   Replace filter when it becomes dirty. It requires replacing filter more often in dusty conditions.

5. Install filter (E) with a rubber seal toward cab.

6. Install filter retainer (D) and wing screws (A).

7. Install cover and wing screws (A).

8. Repeat procedure on the opposite side.
