Replace Tail and Turn Light Bulbs—Cab

1. NOTE: Procedure is the same for both sides of machine.

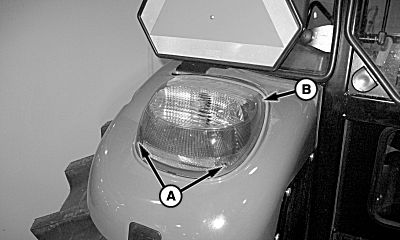

   P14708-UN-05NOV07

   Left Rear Shown

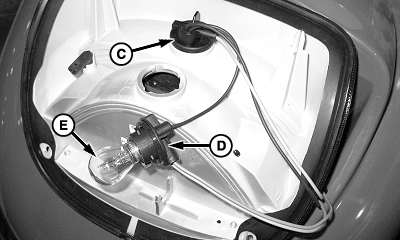

   P14709-UN-05NOV07

   A - Screws

   B - Lens

   C - Turn Signal Socket

   D - Tail Light Socket

   E - Bulb

   Remove screws (A) and cover (B).

---




2. Twist and pull to remove sockets (C) and (D) from lens.

3. Gently push and turn bulb (E) to remove.

4. Install new bulb.

5. Reinstall sockets to lens.

6. Inspect rubber seal for cracks that may cause leaks. Replace if necessary.

7. Reinstall lens (B) with previously removed screws (A).
