Replace Engine Air Intake Filters

PY21405-UN-22AUG14

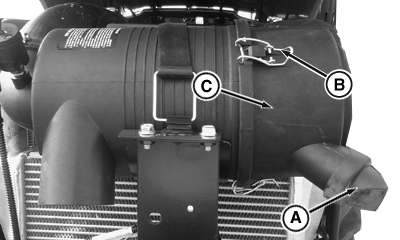

A - Lug

B - Latch (3 Used)

C - Cover

Service Interval—Annually* * Interval can vary according to operating conditions

1. Raise hood by unlocking the key

2. Release Latches (B) and remove Cover (C) from sideways.

3.
   PY21406-UN-22AUG14

   Primary Element


   PY21407-UN-22AUG14

   Secondary Element

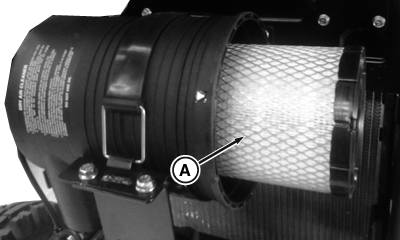

   A - Primary Filter Element

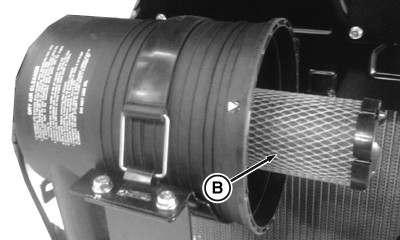

   B - Secondary Filter Element

   Rotate Primary element filter (A) anticlock wise to remove. Do not use excessive force. If filter does not pull out with ease, move side-to-side to remove safely.

---




4. Removal of Secondary filter (B) is similar to removal of Primary filter (A).

   NOTE: When installing the air cleaner canister, make sure that the dust unloader valve is facing down.

5. Install new secondary filter element (B) carefully and lock the filter by rotating the ¼ turn in clockwise direction.

6. Installation of new primary filter element (A) is similar to installation of the secondary filter element (B).

   NOTE: Make sure that both of the primary filter and secondary filter are sealed/seated/installed properly. Also clips on the outer cover of the air cleaner are fixed properly.

7. Close cover and raise latch.

8. Lower hood and lock by key
