Clean Engine Crankcase Vent Tube

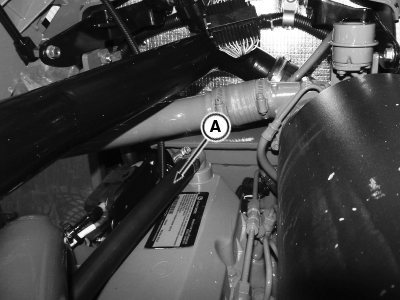

PY27529
PY27529-UN-03FEB16

Below Hood On Top of Engine

A - Crankcase Vent Tube

Service Interval—600 Hours

CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips and wear personal protection equipment, including eye protection.

  1. Locate crankcase vent port on top right-hand side of engine.

  2. Remove crankcase vent tube (A) from engine.

  3. Wash in solvent or blow clean with compressed air. Inspect tube for damage, replace if necessary.

  4. Install vent tube. Make sure vent tube is not kinked or pinched.

VP52664,00002E7-19-20160203
