Drain Water and Sediment From Fuel Filters

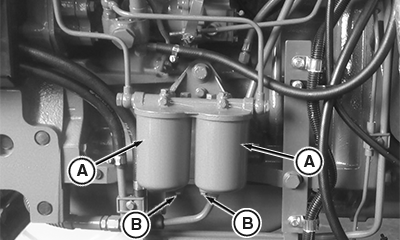

PY27265-UN-23DEC15

Inline Pump Fuel Filters

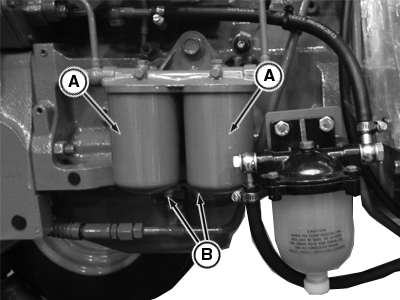

PY27531-UN-03FEB16

If Equipped

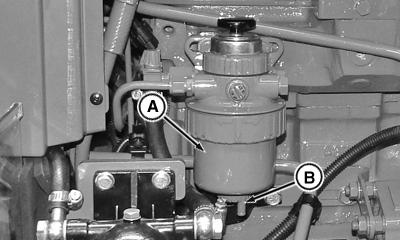

PY21438-UN-22AUG14

Rotary Pump Fuel Filter

A - Fuel Filter

B - Drain Plug

Service Interval—Daily / 10 Hours

1. NOTE: Place a small container under drain fitting to catch draining fuel. Dispose of waste properly.

   Connect a small hose to end-of-drain plug (B).

2. Place a suitable container under drains.

3. Open fuel filter drains (B) to drain moisture and sediment from fuel filter (A).

4. Tighten drains when fuel runs clear.

5. Remove drain hose and connect wiring harness.
