Check and Drain Water from Water Separator Bowl

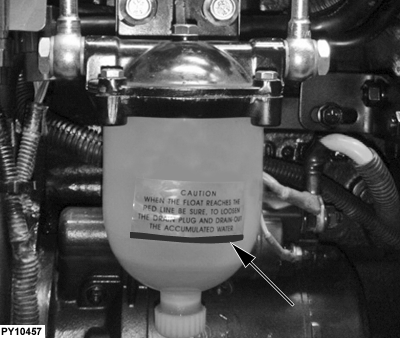

PY10457-UN-21JUN10

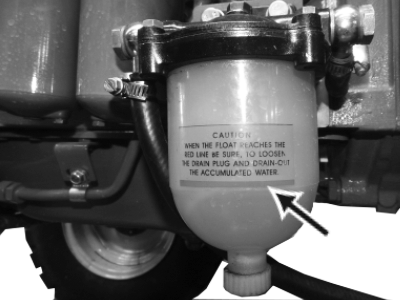

PY25133-UN-08JUL15

If Equipped

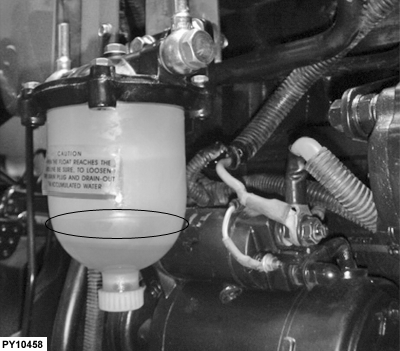

PY10458-UN-21JUN10

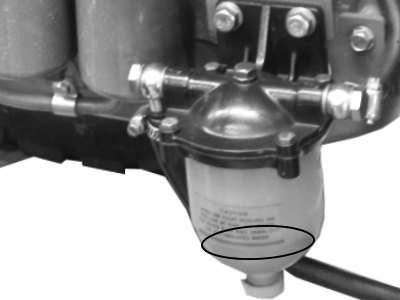

PY25134-UN-08JUL15

If Equipped

1. Drain water from water separator bowl if water reaches the red mark as indicated.

2. If sticker comes off, water separator to be drained when water reaches the line as indicated.
