Light Switch Positions
PY27518-UN-19JAN16

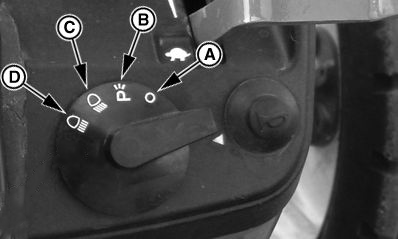

Light Switch
A - Off Position
B - Parking Light Position
C - Low-Beam Headlights Position
D - High-Beam Headlights Position
Light switch has four operating positions:
Parking light position (B): Turns on warning lights. This position is for driving on roads during daytime.
CAUTION: Never use field lights when driving on roads. Dim headlights
for oncoming traffic. Bright lights could blind or confuse other drivers.
Low-beam headlights position (C): Use to dim headlights to low beams when meeting other vehicles as they approach from the front.
High-beam headlights position (D): Use when traveling on public roads at night or during daylight hours when visibility is limited.
IMPORTANT: Keep lighting in good working order. Repair or replace damaged lighting immediately.
|
Switch Position |
Position Lights |
Tail Lights |
Field Light |
Head Lights |
|---|---|---|---|---|
|
A—Off |
Off |
Off |
Off |
Off |
|
B—Parking |
On |
On |
Off |
Off |
|
C—Low Beam |
On |
On |
Off |
On—Low Beams |
|
D—High Beam |
On |
On |
Off |
On—High Beams |
|
VP52664,0000310-19-20160302 |
