Using Turn Signals ( Domestic Tractor)

PY15839-UN-09JUL13

Turn Signal Knob — OOS

APY42731-UN-09OCT20

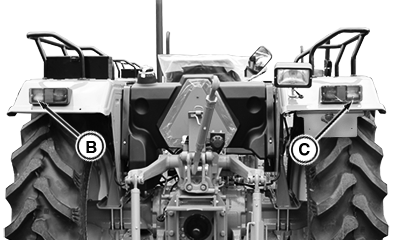

Tail Lights — OOS (License Plate and Illumination Lamp Applicable for India and Nepal If Equipped)

APY40121-UN-07DEC20

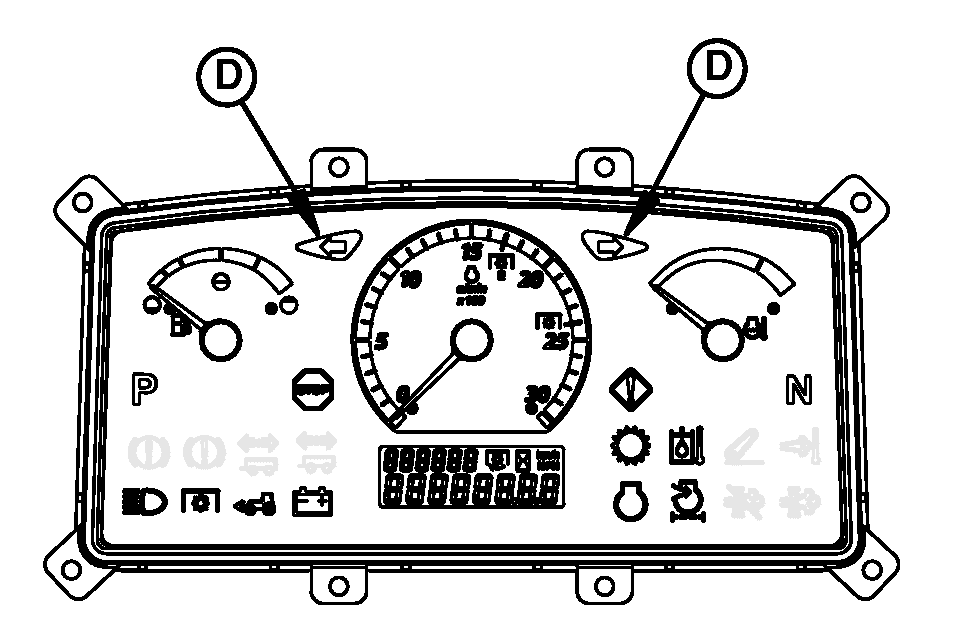

Instrument panel — PowrReverser™

A - Turn Signal Knob

B - Left-Hand Lights

C - Right-Hand Lights

D - Turn Indicator Lights

Turn signal knob (A) position indications:

• Right or Left—For OOS Tractors.

Move turn signal knob (A) left to indicate left-hand turn or right for right-hand turn. Turn indicator lights (D) flash to signal turn direction.

When turn signal knob (A) is in right position, the right-hand side lights (C) flashes of front and rear side. The left-hand lights (B) will flash of front and rear side when turn signal knob (B) is at left position.

NOTE: Be sure to manually return knob to center position after turning.
