Using Turn Signals

PY15839-UN-09JUL13

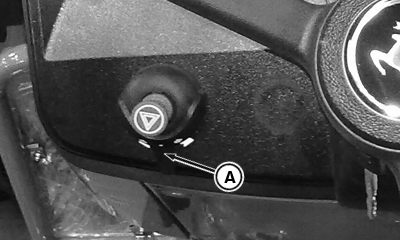

Turn Signal Knob — OOS

APY41752-UN-04NOV20

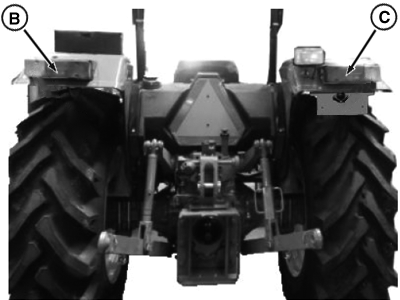

Tail Lights — OOS (License Plate and Illumination Lamp Applicable for India and Nepal If Equipped)

PY17647-UN-30SEP13

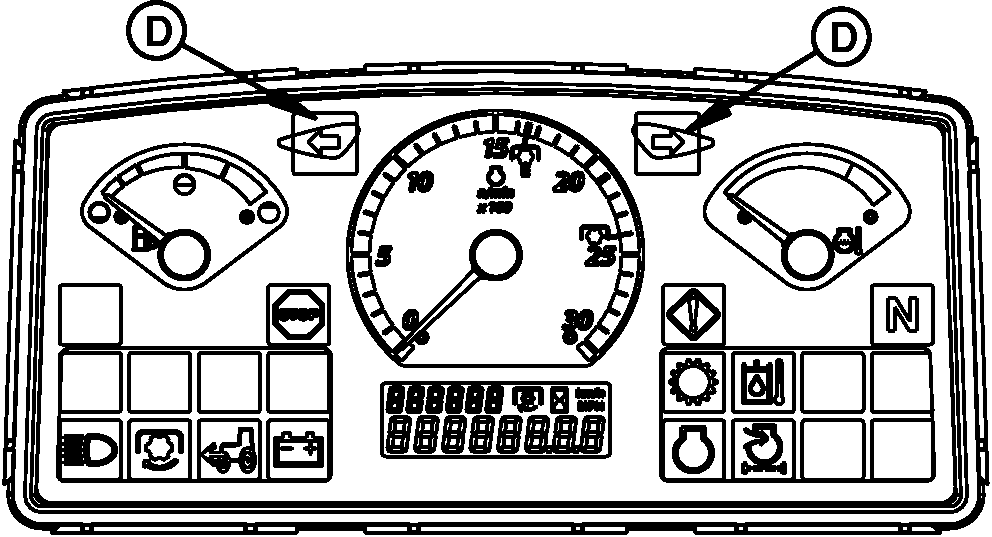

Instrument panel — PowrReverser™

A - Turn Signal Knob

B - Left-Hand Lights

C - Right-Hand Lights

D - Turn Indicator Lights

Turn signal knob (A) position indications:

• Right or Left—For OOS Tractors.

Move turn signal knob (A) left to indicate left-hand turn or right for right-hand turn. Indicator lights (D) flash to signal turn direction.

When knob is in right position, front and rear facing lights on right-hand side (B) flash. Left-hand front and rear facing lights flash when knob is at left position.

NOTE: Be sure to manually return knob to center position after turning.
