Place Tractor in Long-Term Storage

APY36709-UN-07JUN20

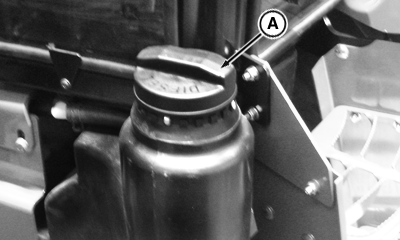

PY16195-UN-27JUN12

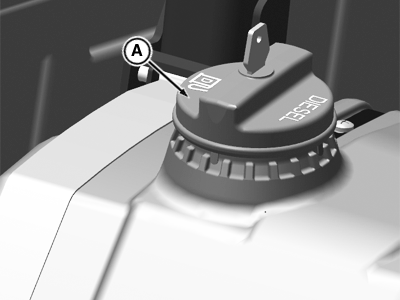

APY36709-UN-07JUN20

Fuel Tank for Ultra Low Sulfur Diesel (ULSD) Fuel

A - Fuel Tank Fill Cap

IMPORTANT: If the tractor not in used for several months, the following recommendations for storage and removal from storage minimize the corrosion and deterioration.

NOTE: Use Engine Storage Kit available from your John Deere dealer.

Perform the following steps for the long-term tractor storage:

1. Service engine air cleaner. (See SERVICE ENGINE AIR INTAKE AND PRE-CLEANER in General Maintenance and Inspection section.)

2. If the coolant in tractor is more than 2 years old, flush cooling system. (See DRAIN, FLUSH AND REFILL COOLING SYSTEM in Maintenance—Cooling System section). Add 50% antifreeze water mixture. Test coolant for the adequate cold-weather protection.

3. Change engine oil and filter (See the procedure in the Lubrication section).

4. Drain fuel tank. Remove fuel tank fill cap (A) and add 4 L (1 gal) of fuel. Install cap.

5. Remove alternator-fan belt after it has cooled.

6. Remove and clean battery. Store in a cool, dry place. Keep it charged.¹

7. Tie or block clutch pedal in the disengaged position.

8. Coat exposed metal surfaces such as the adjustable front axles, if extended, with grease or a corrosion inhibitor.

9.

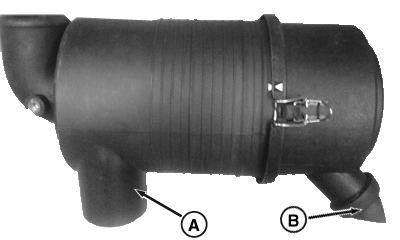

   PY17589-UN-06FEB13

   Air Cleaner

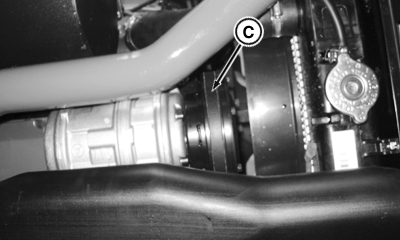

   PY16269-UN-20AUG13

   Air conditioner Compressor (Only for Cab Tractors)

   A - Air Cleaner Inlet

   B - Dust Unloader Valve

   C - Air conditioner Compressor Pulley (If Equipped)

   Use tape to seal engine air cleaner inlet (A), dust unloader valve (B), exhaust pipe, crankcase fill cap, fuel fill cap, coolant recovery tank, and transmission-hydraulic system fill cap.

---




10. To prevent fading of gauges cover the dash with opaque material.

11. Raise tires off ground. Protect from heat and sunlight.

12. Thoroughly clean tractor. Touch up any painted surfaces that are scratched or chipped.

13. If the tractor must be stored outside, cover it with a waterproof material.

14. Cab: Rotate air conditioner compressor pulley (C) several turns once a month to prevent seizure of compressor.
