Tow Tractor

1. CAUTION: NEVER tow tractor faster than 16 km/h (10 mph). Have an operator steer and brake tractor.

   IMPORTANT: To avoid damaging transmission-hydraulic system, observe the following precautions:

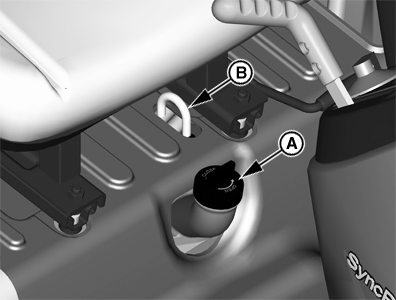

   PY23071-UN-22JAN15

   A - Transmission-Hydraulic Oil Filler Cap

   B - Dipstick, Transmission-Hydraulic Oil

   Be sure transmission-hydraulic system oil is to the full level line on dipstick (B). If the tractor is to be towed with the front wheels raised, add 1 liter of oil to hydraulic oil filler port (A) for each 90 mm (3-1/2 in.) the wheels are raised. DO NOT raise front wheels more than 305 mm (12 in.) above ground.

   NOTE: After transporting tractor, drain oil that was added for towing.

---




2. Make sure that the range shift lever, gearshift lever, forward-reverse lever, and PTO lever in NEUTRAL position.
