Light Switch Positions

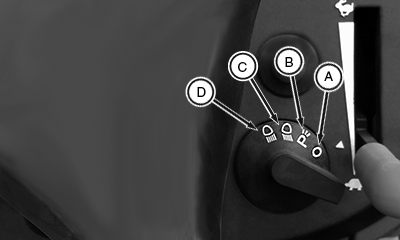

APY04501-UN-07FEB18

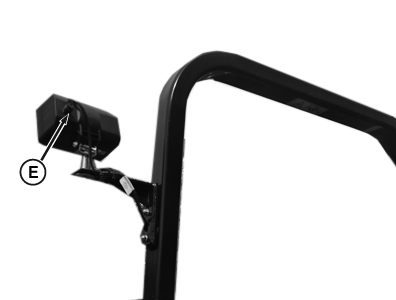

APY04510-UN-12FEB18

A - Lights Off

B - Parking Lights Position

C - Low Beam Headlights, Tail Lights, and Warning Light Position

D - High Beam Headlights, Tail Lights, and Warning Lights Position

E - Flood Light Switch

Tractor light switch has five positions:

A—Turns off all lights.

B—Turns on warning lights only. Use for parking the vehicle

C—Turns on low beam headlights, tail lights, and warning lights. Turn switch to this position before meeting other vehicles.

D—Turns on high beam headlights, tail lights, and warning lights. For highway driving during night time

E— Switch on flood light (work light). For field use only. Do not use on roads. Flood light blind or confuse other drivers
