Use Rear Work Lamp

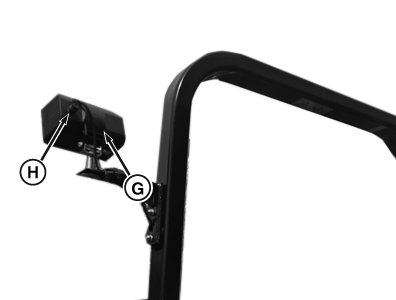

Work lamp (G) is switched on by work lamp switch (H).

APY04504-UN-07FEB18

APY04503-UN-07FEB18

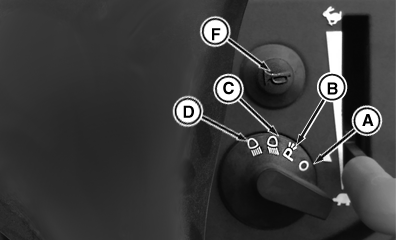

A - Lights Off

B - Parking Lights Position

C - Low Beam Headlights, Tail Lights, and Warning Light Position

D - High Beam Headlights, Tail Lights, and Warning Lights Position

F - Horn

G - Work Lamp

H - Work Lamp Switch

CAUTION: When operating on a road, move light switch to either “High or Low Head Lamp” positions. Never use rear work light when transporting. A clear, bright light at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.
