Seven-Terminal Outlet

PY21962-UN-13JAN15

PY5526-UN-11JUL06

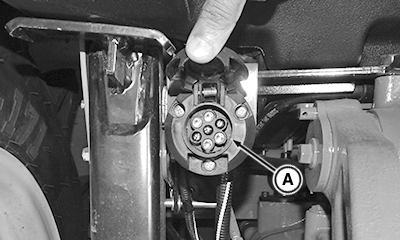

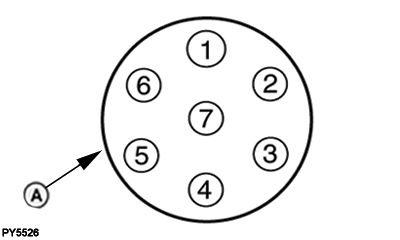

A - Seven-Terminal Outlet

NOTE: Matching/ Mating plug is available through your John Deere dealer.

Terminal	Function	Wire Color
1	Left Turn direction indicator light	Yellow
2	Rear Fog Light	Blue
3	Common Return	White
4	Right Turn direction indicator light	Green
5	Right-hand rear position and marker lights, and rear registration plate illumination device.a	Brown
6	Stop Lights	Red
7	Left-hand rear position and marker lights, and rear registration plate illumination devicea	Black

^aThe rear registration plate illumination device shall be connected such that no lamp of the device has a common connection with both contacts 5 and 7.
