Operate Transmission

PY47141-UN-18JAN18

Forward-Reverse Lever

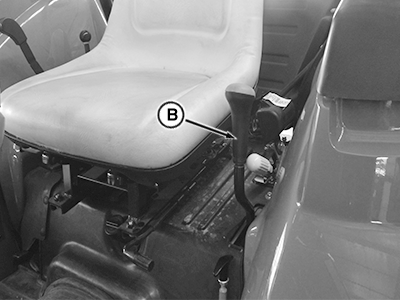

PY23057-UN-08JAN15

Range Shift Lever

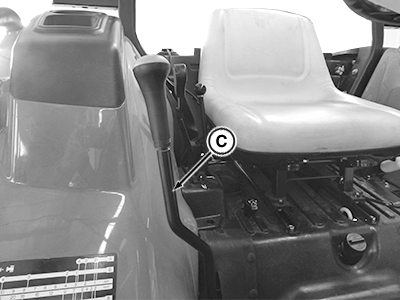

PY23058-UN-08JAN15

Gear Shift Lever

A - Forward- Reverse Lever

B - Range Shift Lever

C - Gear Shift Lever

• Forward and reverse speed directions can be obtained through forward-reverse lever (A)
• Range shift lever (B) provides TWO Range speeds (Range A and Range B).
• Gear shift lever (C) Provides FOUR forward travel speeds with Range A selected and provides FOUR forward travel speeds with Range B selected.
• Using forward-reverse, range and Gear shift levers in different combinations, EIGHT FORWARD speeds, and EIGHT REVERSE speeds can be obtained.
• Forward-reverse lever must be in neutral for the engine to be started.

Forward-Reverse Lever: With tractor stopped, select desired travel direction (forward or reverse). Travel direction change can be done with depressing the clutch pedal and moving forward-reverse lever to F or R as required.

CAUTION: To change the direction, tractor must come to complete stop when shifting forward-reverse lever to any direction.

1. After the tractor has stopped, lower engine rpm to idle speed.
2. Depress clutch pedal FULLY.
3. Select desired direction (forward or reverse).

Range Shift: Select desired speed range (A and B).

Gear (speed) Shift:.

1. Select desired speed (1).
2. Slowly release clutch pedal to gradually take up load.
3. Increase engine speed once shift is completed.
4. With tractor in motion, depress clutch pedal FULLY to select the desired speeds (1, 2, 3, 4) and slowly release clutch pedal to gradually take up the load.

NOTE: 1. Change range shift and gearshift lever by depressing clutch and select the respective gears. 2. When the tractor is started with speed gear engaged (forward-reverse lever is in neutral), the tractor not moves until forward-reverse lever is set to forward or reverse and range shift is in A or B
