Stopping Tractor

1. CAUTION: Always place the forward-reverse lever, gear shift lever, and range shift lever are in NEUTRAL and set park brakes before dismounting. Leaving transmission in gear with engine off MAY NOT prevent tractor from moving.


   PY47141-UN-18JAN18


   PY21953-UN-02MAR15


   PY23122-UN-02MAR15


   PY21989-UN-02MAR15


   PY21990-UN-02MAR15

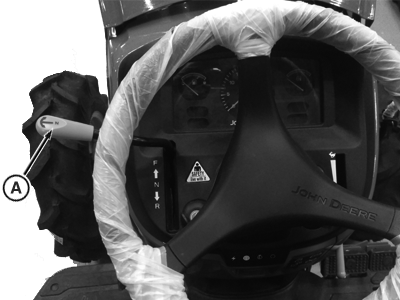

   A - Forward- Reverse Lever

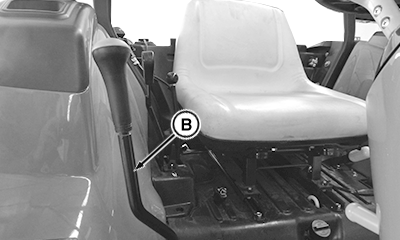

   B - Gear Shift Lever

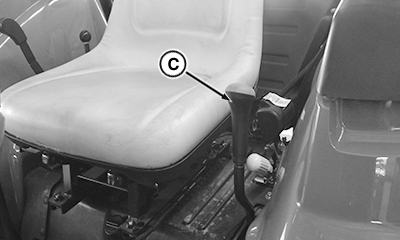

   C - Range Shift Lever

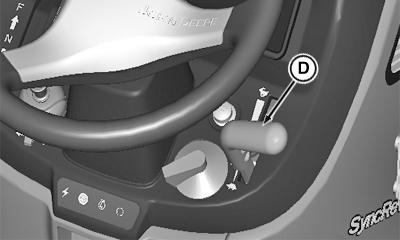

   D - Hand Throttle Lever

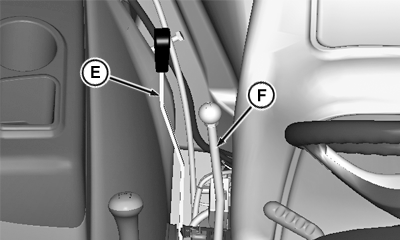

   E - Position Control Lever

   F - SCV Lever

   Stop the tractor and place forward-reverse lever (A), gear shift lever, (B) and range shift lever (C) are in NEUTRAL

---




2. Lower all equipment to ground using rockshaft position control lever (E) and SCV lever (F).

3. Pull the hand throttle lever (D) down to the slow idle position. Allow engine to idle for 1—2 minutes.

   IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

4. CAUTION: Remove the key from key switch to prevent operation by untrained personnel.


   PY21991-UN-02MAR15


   PY23121-UN-02MAR15

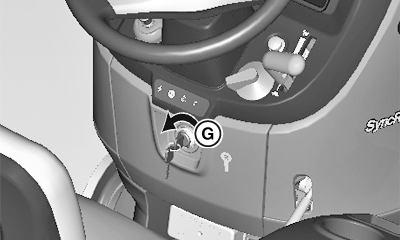

   G - Key Switch-off Position

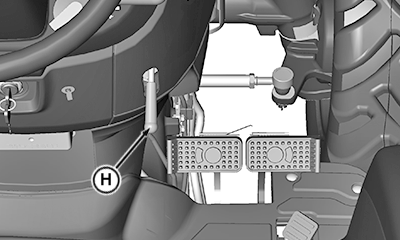

   H - Park Brake Lever

   Turn key switch to OFF position (G).

---




5. Press both the brake pedal (brake pedal lock should be in engage condition) and move park brake lever (H) upwards to apply park brake. (See Operate Park Brake Lever in Operator's Platform section.)
