Use Turn Signals

PY23132-UN-03MAR15

PY23127-UN-03MAR15

APY21590-UN-20AUG20

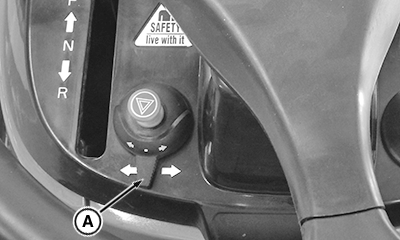

A - Turn Signal Lever

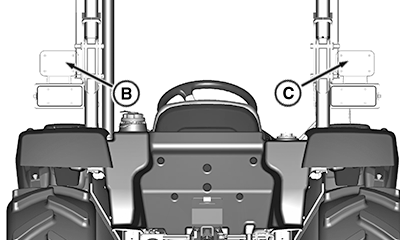

B - Left-Hand Lights

C - Right-Hand Lights

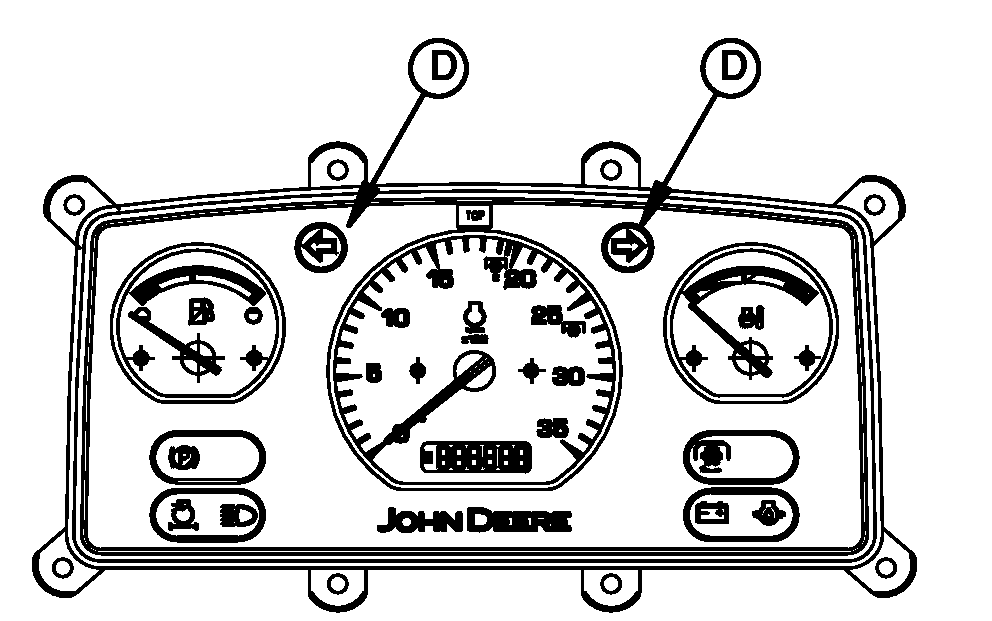

D - Turn Indicator Lights

Move turn signal lever (A) left to indicate left-hand turn or right for right-hand turn. Indicator lights (D) flash to signal turn direction.

When lever is right, front, and rear facing lights on right-hand side (C) flash while left-hand lights (B) glow steady. Left-hand lights (B) flash and right-hand lights (C) glow steady when lever is left.

NOTE: Be sure to return lever to center position after turning.
