Battery Charge Indicator
APY21594-UN-07SEP20

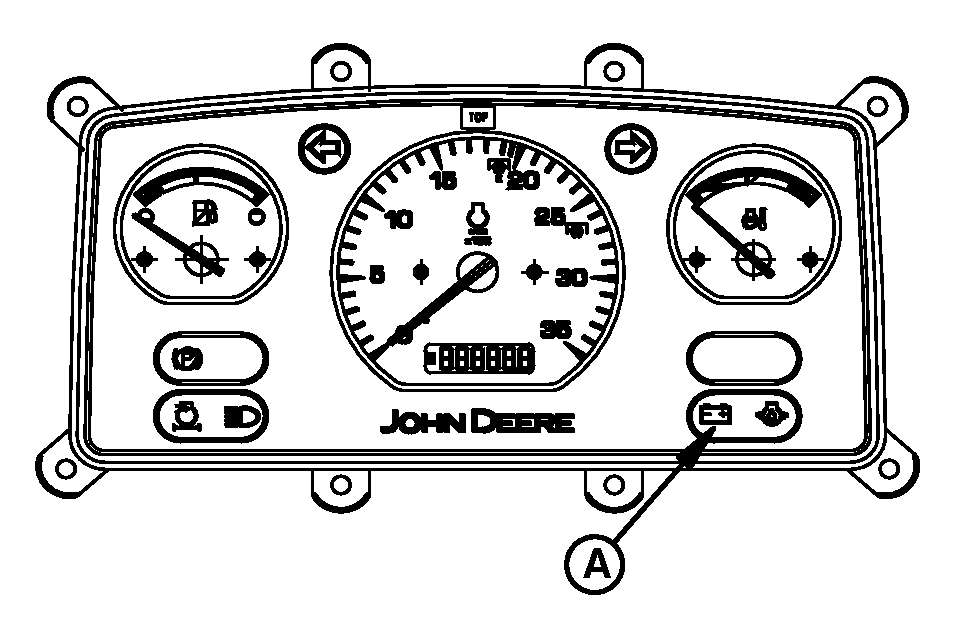

A - Battery Charge Indicator
Battery charge indicator (A) will light when alternator output is low. Indicator should light when key is turned to engage starter, and go out when engine starts.If indicator stays lit for longer than 5 seconds in normal operation, stop engine and check for cause. If loose or broken fan belt is not the cause, see your John Deere dealer.
|
MD36154,0001260-19-20200819 |
