Coolant Temperature Gauge
APY21596-UN-07SEP20

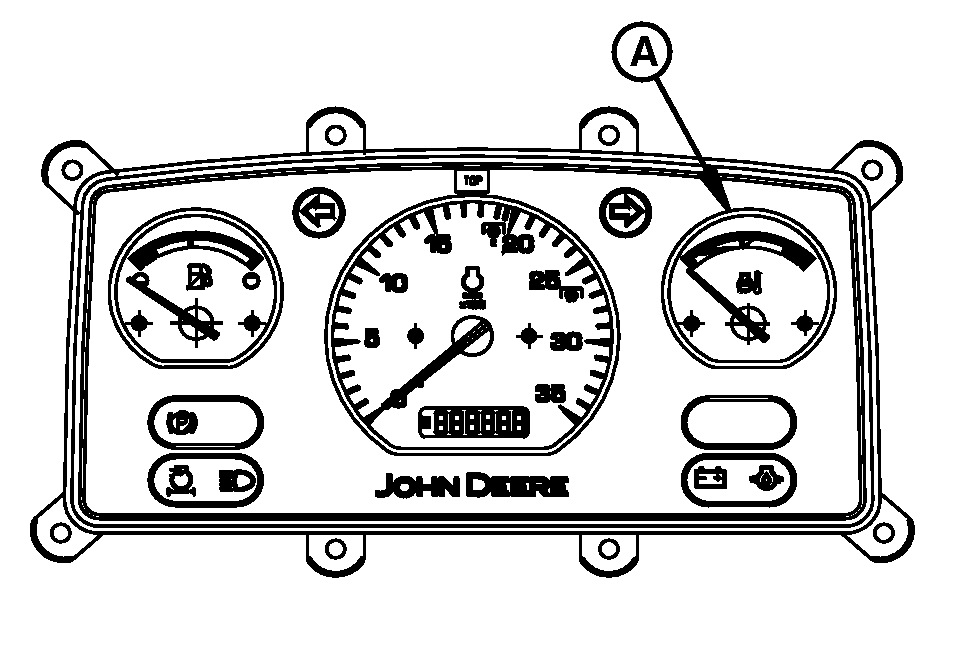

A - Coolant Temperature Gauge
The needle on the coolant temperature gauge (A) rises as engine warms up. If needle reaches red zone, stop engine and determine the cause.
CAUTION: DO NOT remove radiator cap or drain coolant until coolant
is cold. Always loosen radiator cap slowly to relieve any excess pressure.
Check coolant level in radiator when engine cools. Also check grille, radiator and radiator front screens for clogging. Check fan belt tension. If problem is not corrected, visit your John Deere dealer.
|
MD36154,0001262-19-20200819 |
