Working With Speed/Hour Meter

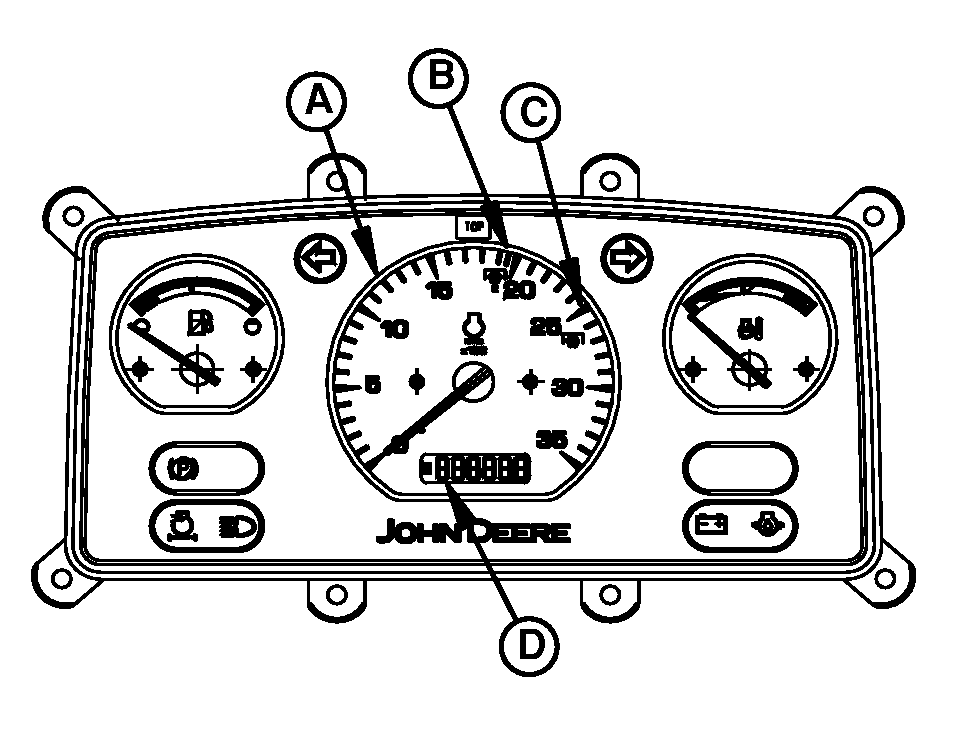

APY21600-UN-07SEP20

A - Tachometer

B - 1925 ERPM Mark PTO 540E

C - 2500 ERPM Mark PTO 540

D - Hour Meter

Tachometer (A) shows engine rpm, read in hundreds.

For 540 rpm PTO speed, increase engine speed until tachometer needle is aligned with 2500 rpm mark (B).

To obtain 540E PTO (Economy mode), slide PTO lever towards left and then move forward to engage at 540E PTO and set the engine rpm to 1925 ERPM.

Hour meter (C) shows hours of operation in full hours and tenths.
