Operate Tractor PTO

  1. Start the engine, and push hand throttle lever (A) forward until engine speed is sufficient to start PTO implement. Engine speed must be less than 2700 rpm.

    PY21976
    PY21976-UN-22MAY19

    APY40001
    APY40001-UN-25SEP20

    PY21994
    PY21994-UN-28JAN15

    PY23070
    PY23070-UN-09JUN15

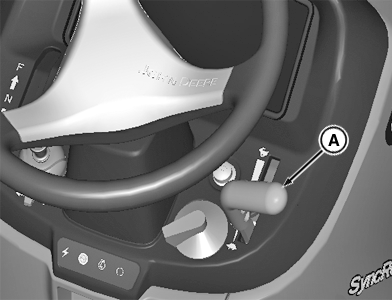

    A - Hand Throttle Lever

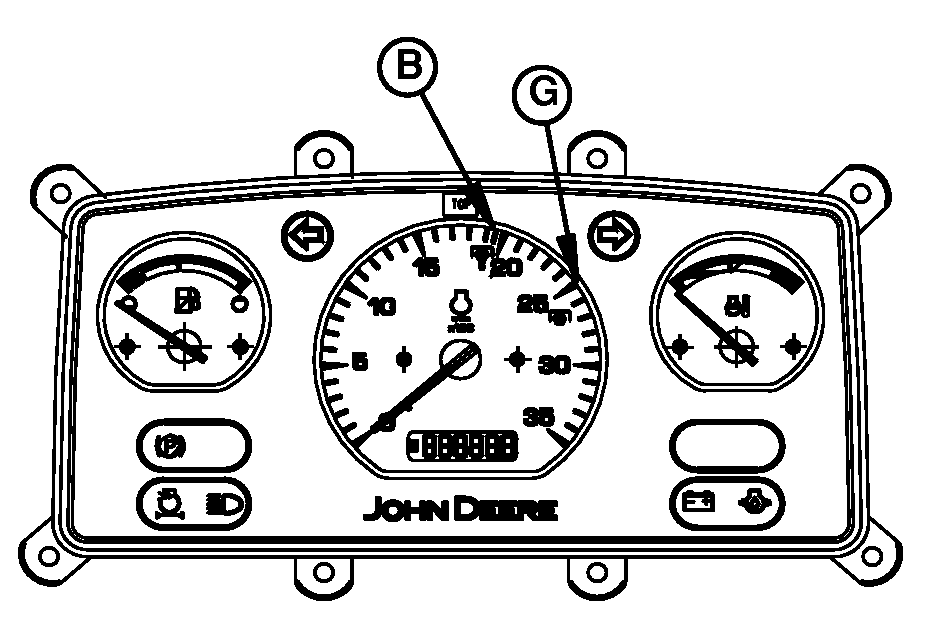

    B - PTO 540E Operation Speed

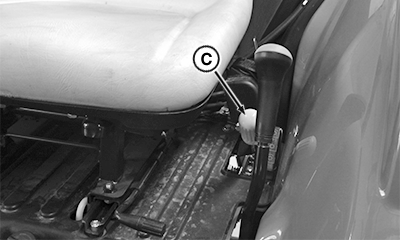

    C - PTO Control Lever

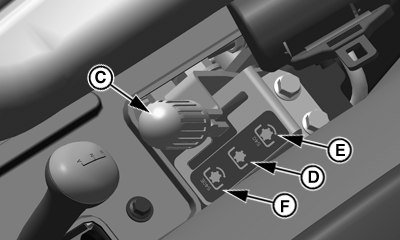

    D - PTO at Neutral Position

    E - Engage PTO at 540 rpm

    F - Engage PTO at 540E rpm

    G - PTO 540 Operation Speed


  2. To engage standard PTO 540 rpm, slide PTO Lever (C) towards right and then rearward (E) and to engage PTO 540E rpm, slide PTO Lever (C) towards left and then forward (F) as shown.

  3. Set engine speed to 2500 rpm for 540 PTO operation and 1925 rpm for 540E PTO operation.

  4. To disengage PTO, move PTO lever (C) to NEUTRAL position (D) as shown.

CAUTION: Turn key OFF to stop engine, set brakes and make sure that all mechanisms have stopped before cleaning out machine or making any adjustments to PTO driven implement.

MD36154,0001268-19-20200819
