ROPS in Normal Position

PY15860-UN-23SEP13

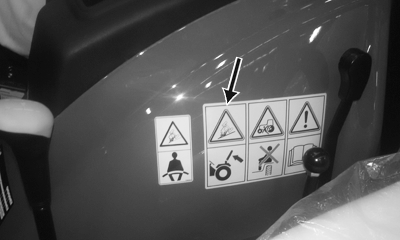

PY23287-UN-22JUL15

On Right Side of the Fender

CAUTION: Avoid crushing injury or death during rollover.

Use Foldable ROPS and Seat Belt Properly.

If this machine is equipped with a foldable roll-over protective structure (ROPS), keep the ROPS in the fully extended and locked position

USE a seat belt when you operate with a ROPS in the fully extended position.

- Hold the latch and pull the seat belt across the body.

- Insert the latch into the buckle. Listen for a click.

- Tug on the seat belt to make sure the belt is securely fastened.

- Snug the seat belt across the hips.

If this machine is operated with the ROPS folded (e.g., to enter a low building), drive with extreme caution. DO NOT USE a seat belt with the ROPS folded. Return the ROPS to the raised, fully extended position as soon as the machine is operated under normal conditions.
