Use Foldable ROPS and Seat Belt Properly

PY19668-UN-22JUL15

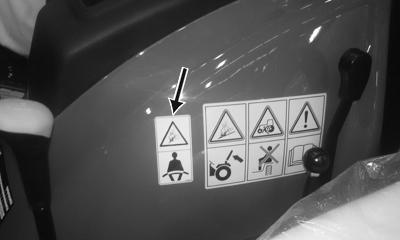

On Right Side of the Fender

PY19102-UN-19NOV13

Use Seat Belt

Use Foldable ROPS and Seat Belt Properly

CAUTION: Avoid crushing injury or death during rollover.

• This machine is equipped with a foldable rollover protective structure (ROPS). Keep the ROPS in the fully extended and locked position.USE seat belt when you operate with a ROPS.

  - Hold the latch and pull the seat belt across the body.

  - Insert the latch into the buckle. Listen for a click.

  - Tug on the seat belt latch to make sure that the belt is securely fastened.

  - Snug the seat belt across the hips.

• If this machine is operated with the ROPS folded (for example, to enter a low building), drive with extreme caution. DO NOT USE a seat belt with the ROPS folded.
• Return the ROPS to the raised, fully extended position as soon as the machine is operated under normal conditions.
