Rockshaft Control Levers

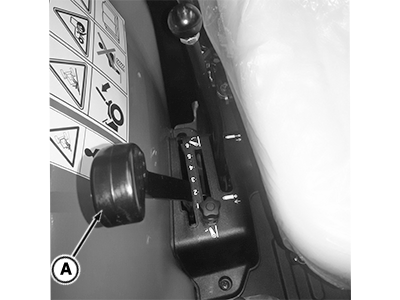

  1. PY24515
    PY24515-UN-23JUL15

    A - Position Control Lever

    The position is controlled by the position control lever (A).


  2. The position control lever (A) raises the hitch when pulled rearward, and lowers the hitch when moved forward. (See Use Position Control in this section for more information.)

NOTE: The implement rate of drop control knob should be in center position of raising/lowering hitch.
