Set Position Control Lever Stop

1. NOTE: Position control lever stop is used when operating depth or height needs to be repeated.

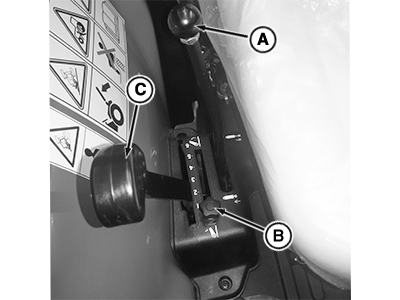

   PY24523-UN-23JUL15

   A - Selective Control Valve (SCV) Lever

   B - Position Control Lever Stop

   C - Position Control Lever

   Operate implement for a few minutes to determine proper depth or height.

---




2. Raise lever stop as shown (B), and slide against position control lever (C). Hand-tighten the lever stop by rotating clockwise direction.

3. Rockshaft will now lower to same position each time control lever is pushed forward to the stop.
