Use Position Control

PY24515-UN-23JUL15

PY23269-UN-05FEB15

A - Position Control Lever

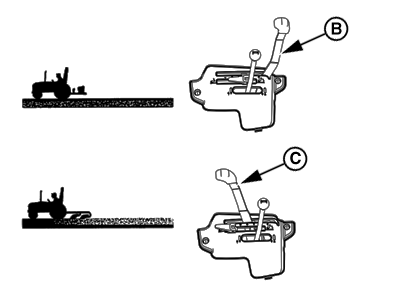

B - Position Control Lever in Rearward Position

C - Position Control Lever in Desired Depth Position

NOTE: The implement rate of drop control knob should be in center position of raising/lowering hitch.

Use position control lever (A) to control hitch movement and depth. Position control should be used for the following applications:

TRANSPORT of implements and end of field turn-around. Position control lever should be moved fully rearward (B) for transport.

CONSTANT DEPTH of implements on level terrain and for non- ground engaging implements such as rotary tiller. Place position control lever at depth desired (C).
