Warm Transmission-Hydraulic System Oil

CAUTION: Overheated hydraulic oil can cause personal injury and component malfunctions. To prevent hydraulic oil from overheating, DO NOT hold SCV in operating position for an extended period of time.

PY22030
PY22030-UN-06NOV14

PY24517
PY24517-UN-23JUL15

A - Hydraulic Oil Filter

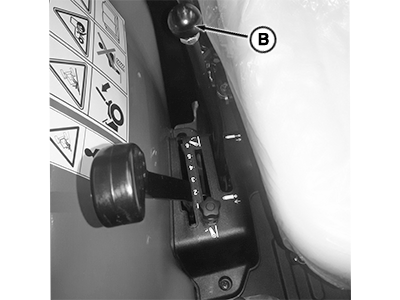

B - Selective Control Valve (SCV) Lever

Hydraulic system may be slow to function when tractor is started in cold weather. This is because cold oil will not flow as easily through the hydraulic system filter (A).

Hydraulic system will function normally when oil warms up.

IMPORTANT: To prevent damaging hydraulic pump or relief valve, DO NOT exceed two to three minutes warm-up time with steering wheel held in full left or full right turn position.

Place the SCV lever (B) in end position as shown.

This will result in faster increase in oil temperature.

NM61126,00000B9-19-20150716
