Replace Air Cleaner Elements (Primary)

1.

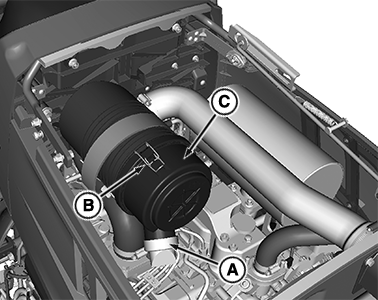

   PY24519-UN-22MAY19

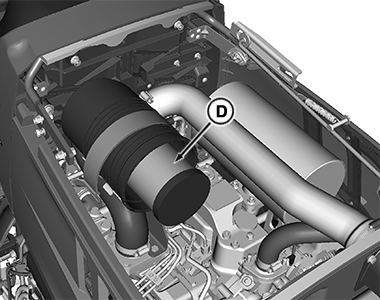

   PY24520-UN-22MAY19

   A - Dust Unloader Valve

   B - Latch

   C - Cover

   D - Primary Filter Element

   Open hood.

---




2. Release latch (B) and remove cover (C) from sideways.

3. Rotate ¼ turn of the primary filter element (D) anti-clock wise to remove. Do not use excessive force. If filter does not pull out with ease, move side-to-side to remove safely.

4. Clean out any dirt in canister taking care not to damage the secondary filter element.

   NOTE: When installing the air cleaner canister, make sure that the dust unloader valve (A) is facing down.

5. Install new primary filter element (D) carefully and lock the filter by rotating the ¼ turn in clockwise direction.

6. Install the latch (B) and cover (C) in reverse order of removal.

   NOTE: Make sure that the primary filter is sealed/seated/installed properly. Also latch on the outer cover of the air cleaner are fixed properly.

7. Lower hood.
