Clean Air Cleaner Element

PY24519-UN-22MAY19

PY24520-UN-22MAY19

PY22086-UN-08DEC14

A - Dust Unloader Valve

B - Latch

C - Cover

D - Primary Filter Element

The engine performance is adversely affected when the air cleaner element is clogged with dust. Be sure to clean the air filter element periodically.

1. Open hood.

2. Release latch (B) and remove cover (C) from sideways.

3. Rotate ¼ turn of the primary filter element (D) anti-clock wise to remove. Do not use excessive force. If filter does not pull out with ease, move side-to-side to remove safely.

4. CAUTION: ALWAYS wear eye protection when servicing the engine and when using compressed air or high-pressure water. Dust, flying debris, compressed air, pressurized water or steam may injure your eyes.

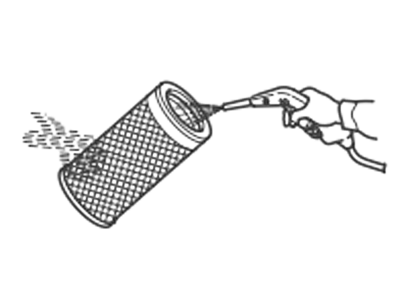

   CAUTION: CAUTION: Avoid injury! Compressed air can cause debris to fly a long distance. Wear eye protection when using compressed air for cleaning purposes. Reduce compressed air pressure to 210 kPa (30 psi)

   Remove the dust without damaging the primary filter element.

5. Clean inner side of the air cleaner cover (C). Clean out any dirt in canister taking care not to damage the secondary filter element (E).

6. Reinstall the primary filter element (D) into the air cleaner case.

7. Reinstall the air cleaner cover (C).

8. Latch the clips (B) on the air cleaner cover (C).
