Use Selective Control Valve Lever

  1. PY24516

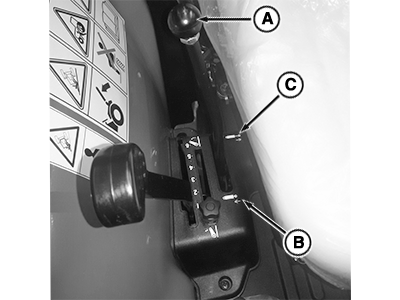

    PY24516-UN-23JUL15

    A - Selective Control Valve (SCV) Lever

    B - Downward Position

    C - Upward Position

    Position the selective control valve lever (A) to the forward-most setting (B). This will adjust the front blade to the lowest position.


  2. Pull the selective control valve lever back (C) toward you to raise the front blade.

NM61126,00000C3-19-20150723
